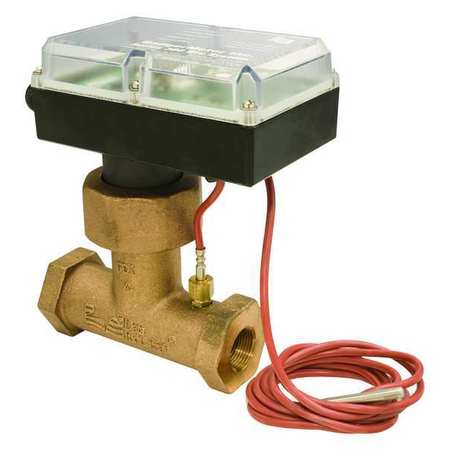

Home / Flow Meter, Brass, 2.70 to 40.48 GPM

Flow Meter, Brass, 2.70 to 40.48 GPM

SKU
Brand Impeller
Categories Raw Materials
Description Electronic Flowmeter, Product Type BTU System Meter, Flowmeter Type Paddlewheel, Accuracy +/-2 Percent, Connection Size 1 in, Connection Type NPT, Compatible Flow Material Water, Media Temperature - Maximum 126.7 Degrees F, Media Temperature - Minimum -6.7 Degrees F, Viscosity - Maximum 32.6 SUS, Voltage - Maximum 28V DC; 35V AC, Housing Material Polycarbonate, Rotor Material Stainless Steel, O-Ring Material EPDM, Seal Material EPDM, Shaft Material Tungsten Carbide, Wetted Material Brass, PEEK

Web Price

$1,063.74 / each

Product Details

Accuracy +/-2%

Accuracy (%) +/-2

Ambient Temperature -4 Degrees to 149 Degrees F

Cable Length Not Applicable

Compatible Flow Material Water

Connection Size 1 in

Connection Type NPT

Country of Origin (subject to change) United States

Display Type Not Applicable

Fitting Size (In.) 1

Fitting Type FNPT

Flow Range 2.70 to 40.48 gpm

Flow Range (GPM) 2.70 to 40.48

Flow Rate - Maximum 40.48 gpm

Flow Rate - Minimum 2.7 gpm

Flowmeter Type Paddlewheel

Fluid Temp. Range 40 Degrees to 260 Degrees F

Fluid Temp. Range (Deg. C) 4 to 125

Fluid Temp. Range (Deg. F) 40 to 260

For Pipe Size 1 in

Frequency - Maximum 100 Hz

Frequency - Minimum 1/100 Hz

Housing Material Polycarbonate

Includes Flow Rate Adjustment Knob No

Includes Pressure Gauge No

Includes Totalizer Yes

Length (In.) 6 43/64 in

Max. Pressure 400 psi

Media Temperature - Maximum 126.7 Degrees F

Media Temperature - Minimum -6.7 Degrees F

Mounting Orientation Horizontal

O-Ring Material EPDM

Operating Pressure - Maximum 400 psi

Output Type Scaled Pulse

Overall Height 7.9 in

Overall Length 6.7 in

Overall Width 3.5 in

Package Quantity 1

Pipe Size 1

Power Requirement 12-28V AC

Pressure Rating (PSI) 400

Product Type BTU System Meter

Pulse Rate Not Applicable

Repeatability 0.50%

Rotor Material Stainless Steel

Seal Material EPDM

Sensor Type Paddlewheel

Shaft Material Tungsten Carbide

Special Features Forward Swept Impeller Shape with A Proprietary, Non-Magnetic Sensing Mechanism to Measure Liquids In A Variety of Industrial and Commercial Markets

Standards IEC751 Class B

Type Impeller

Unit Of Measure Gallons

Viscosity - Maximum 32.6 SUS

Voltage - Maximum 28V DC; 35V AC

Wetted Material Brass, PEEK

Wetted Materials Brass, PEEK
