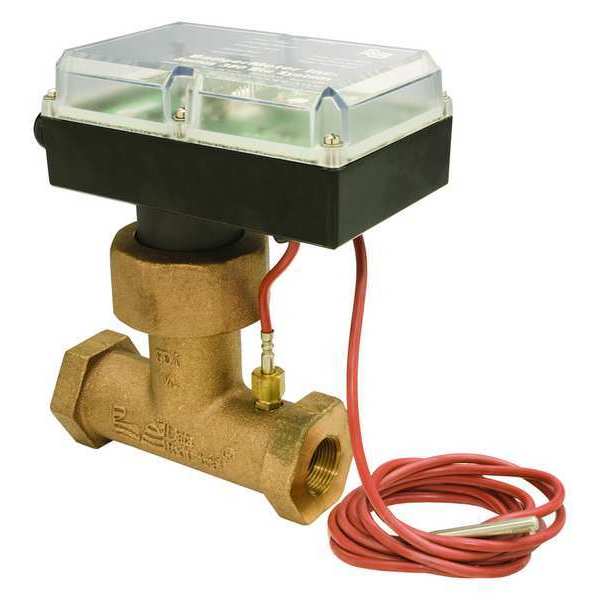

Flow Meter, Impeller, 10.49 to 157.34 GPM

SKU
Brand Impeller
Categories
Description Electronic Flowmeter, Product Type BTU System Meter, Flowmeter Type Paddlewheel, Accuracy +/-2 Percent, Connection Size 2 in, Connection Type NPT, Compatible Flow Material Water, Media Temperature - Maximum 126.7 Degrees F, Media Temperature - Minimum -6.7 Degrees F, Viscosity - Maximum 32.6 SUS, Voltage - Maximum 28V DC; 35V AC, Housing Material Polycarbonate, Rotor Material Stainless Steel, O-Ring Material EPDM, Seal Material EPDM, Shaft Material Tungsten Carbide, Wetted Material Brass, PEEK

Web Price

$1,257.49 / each

Product Details

Accuracy +/-2%

Accuracy (%) +/-2

Ambient Temperature -4 Degrees to 149 Degrees F

Cable Length Not Applicable

Compatible Flow Material Water

Connection Size 2 in

Connection Type NPT

Country of Origin (subject to change) United States

Display Type Not Applicable

Fitting Size (In.) 2

Fitting Type FNPT

Flow Range 1 to 15 LPM

Flow Range (GPM) 10.49 to 157.34

Flow Rate - Maximum 157.34 gpm

Flow Rate - Minimum 10.49 gpm

Flowmeter Type Paddlewheel

Fluid Temp. Range 40 Degrees to 260 Degrees F

Fluid Temp. Range (Deg. C) 4 to 125

Fluid Temp. Range (Deg. F) 40 to 260

For Pipe Size 2 in

Frequency - Maximum 100 Hz

Frequency - Minimum 1/100 Hz

Housing Material Polycarbonate

Includes Flow Rate Adjustment Knob No

Includes Pressure Gauge No

Includes Totalizer Yes

Length (In.) 7 7/8 in

Max. Pressure 400 psi

Media Temperature - Maximum 126.7 Degrees F

Media Temperature - Minimum -6.7 Degrees F

Mounting Orientation Horizontal

O-Ring Material EPDM

Operating Pressure - Maximum 400 psi

Output Type Scaled Pulse

Overall Height 8.5 in

Overall Length 7.9 in

Overall Width 3.5 in

Package Quantity 1

Pipe Size 2

Power Requirement 12-28V AC

Pressure Rating (PSI) 400

Product Type BTU System Meter

Pulse Rate Not Applicable

Repeatability 0.50%

Rotor Material Stainless Steel

Seal Material EPDM

Sensor Type Paddlewheel

Shaft Material Tungsten Carbide

Special Features Forward Swept Impeller Shape with A Proprietary, Non-Magnetic Sensing Mechanism to Measure Liquids In A Variety of Industrial and Commercial Markets

Standards IEC751 Class B

Type Impeller

Unit Of Measure Gallons

Viscosity - Maximum 32.6 SUS

Voltage - Maximum 28V DC; 35V AC

Wetted Material Brass, PEEK

Wetted Materials Brass, PEEK
