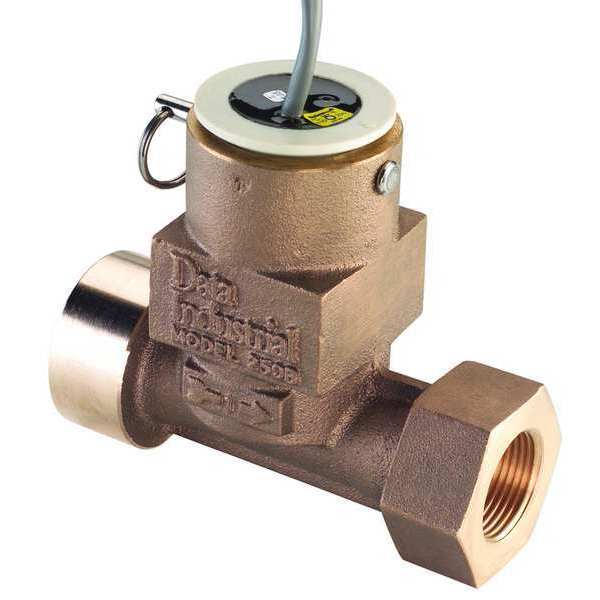

Name: Flow Meter, Impeller, 3/4 in. Fitting Size
Brand: Impeller
SKU: G4309098
Price: 853.74 USD
Availability: OutOfStock

Home / Flow Meter, Impeller, 3/4 in. Fitting Size

Flow Meter, Impeller, 3/4 in. Fitting Size

SKU
Brand Impeller
Categories
Description Electronic Flowmeter, Product Type Metallic Tee Type Flow Sensor, Flowmeter Type Paddlewheel, Accuracy +/-1 Percent, Connection Size 3/4 in, Connection Type FNPT, Compatible Flow Material Water, Media Temperature - Maximum 221 Degrees F, Media Temperature - Minimum 0 Degrees F, Viscosity - Maximum 32.6 SUS, Voltage - Maximum 35V DC, Housing Material Bronze, Rotor Material Nylon, O-Ring Material EPDM, Seal Material EPDM, Shaft Material Tungsten Carbide

Web Price

$853.74 / each

Product Details

Accuracy +/-1%

Accuracy (%) +/-1

Cable Length 20 ft

Compatible Flow Material Water

Connection Size 3/4 in

Connection Type FNPT

Country of Origin (subject to change) United States

Display Type Not Applicable

Fitting Size (In.) 3/4

Fitting Type FNPT

Flow Range 1 to 15 LPM

Flow Rate - Maximum 20.6 gpm

Flow Rate - Minimum 0.41 gpm

Flowmeter Type Paddlewheel

Fluid Temp. Range 0 Degrees to 221 Degrees F

Fluid Temp. Range (Deg. C) 0 to 105

Fluid Temp. Range (Deg. F) 0 to 221

For Pipe Size 3/4 in

Frequency - Maximum 200 Hz

Frequency - Minimum 3 1/5 Hz

Housing Material Bronze

Includes Flow Rate Adjustment Knob No

Includes Pressure Gauge No

Includes Totalizer No

Max. Pressure 400 psi

Media Temperature - Maximum 221 Degrees F

Media Temperature - Minimum 0 Degrees F

Mounting Orientation Horizontal

O-Ring Material EPDM

Operating Pressure - Maximum 400 psi

Output Type Standard Frequency Pulse

Overall Height 4.7 in

Overall Length 4 in

Package Quantity 1

Pipe Size 3/4

Pressure Rating (PSI) 400

Product Type Metallic Tee Type Flow Sensor

Pulse Rate Not Applicable

Repeatability 0.70%

Rotor Material Nylon

Seal Material EPDM

Sensor Type Paddlewheel

Shaft Material Tungsten Carbide

Special Features Forward Swept Impeller Shape with A Proprietary, Non-Magnetic Sensing Mechanism to Measure Liquids In A Variety of Industrial and Commercial Markets

Standards CE Certified

Type Impeller

Unit Of Measure Gallons

Viscosity - Maximum 32.6 SUS

Voltage - Maximum 35V DC

Wetted Material Brass, EPDM, Nylon, Tungsten Carbide, UHMWPE

Wetted Materials Brass, EPDM, Nylon, Tungsten, UHMWPE
