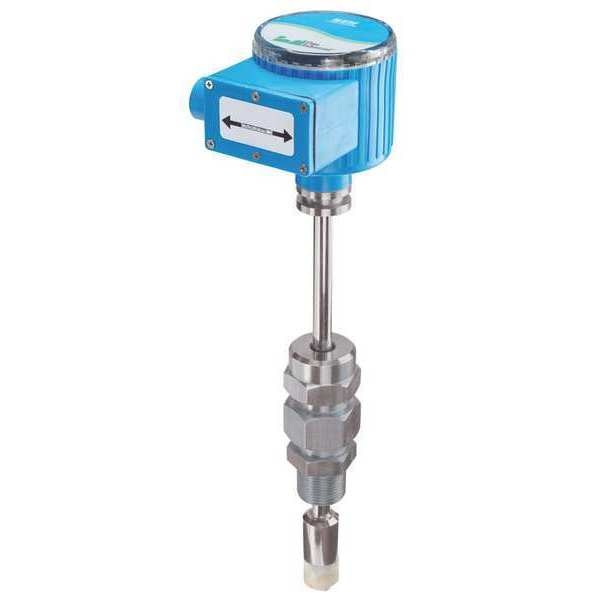

Flow Meter, Impeller, Stainless Steel

SKU
Brand Impeller
Categories
Description Electronic Flowmeter, Product Type Flow Sensor, Flowmeter Type Paddlewheel, Accuracy +/-1 Percent, Connection Size 36 in, Connection Type Insertion, Compatible Flow Material Water, Media Temperature - Maximum 150 Degrees F, Media Temperature - Minimum 14 Degrees F, Viscosity - Maximum 32.6 SUS, Voltage - Maximum 35V DC, Housing Material Stainless Steel, Rotor Material Stainless Steel, O-Ring Material Viton, Seal Material Viton, Shaft Material Tungsten Carbide
graingerSKU: 49DF30, mscSKU: , zoro_no: G4308991, mongo_id: 65bbe65c3aaddbd5a9024b0a

Web Price

$1,306.24 / each

Product Details

Accuracy +/-1%

Accuracy (%) +/-1

Cable Length Not Applicable

Compatible Flow Material Water

Connection Size 36 in

Connection Type Insertion

Country of Origin (subject to change) United States

Display Type Not Applicable

Fitting Type Insertion

Flow Range 352 to 63,452 gpm

Flow Rate - Maximum 20 gpm

Flow Rate - Minimum 1 gpm

Flowmeter Type Paddlewheel

Fluid Temp. Range 14 Degrees to 150 Degrees F

Fluid Temp. Range (Deg. C) -10 to 65

Fluid Temp. Range (Deg. F) 14 to 150

For Pipe Size 12 to 36 in

Frequency - Maximum 800 Hz

Frequency - Minimum Not Applicable

Housing Material Stainless Steel

Includes Flow Rate Adjustment Knob No

Includes Pressure Gauge No

Includes Totalizer Yes

Media Temperature - Maximum 150 Degrees F

Media Temperature - Minimum 14 Degrees F

Mounting Orientation Horizontal

O-Ring Material Viton

Operating Pressure - Maximum 1,000 psi

Output Type Standard Frequency Pulse

Package Quantity 1

Pipe Size 12 to 36

Product Type Flow Sensor

Pulse Rate Not Applicable

Repeatability 0.50%

Rotor Material Stainless Steel

Seal Material Viton

Sensor Type Paddlewheel

Shaft Material Tungsten Carbide

Special Features Forward Swept Impeller Shape with A Proprietary, Non-Magnetic Sensing Mechanism to Measure Liquids In A Variety of Industrial and Commercial Markets

Standards NSF 61/372

Type Impeller

Unit Of Measure Gallons

Viscosity - Maximum 32.6 SUS

Voltage - Maximum 35V DC

Wetted Material B16 Alloy Steel, Brass, C360 Brass

Wetted Materials 316 Stainless Steel, Brass, PEEK, PPS
