Home / Defrost Timer, 120/240V, 40A, 1 NO, 1 NC

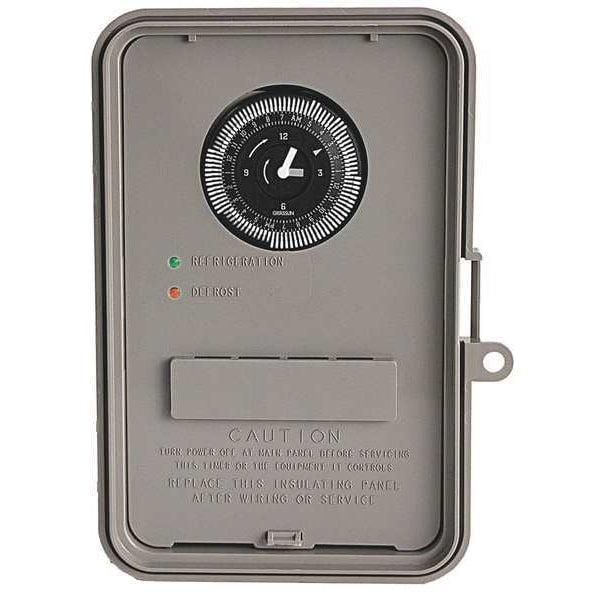

Defrost Timer, 120/240V, 40A, 1 NO, 1 NC

SKU
Brand Intermatic
Categories
Description Defrost Timer Control, Voltage 120/240V AC, Amps 40 A, Contact Type 1 NO/1 NC, Max. On/Off Cycles 48 Per Day, Defrost Time (Minutes) 15 to 1425, Enclosure Material Plastic, Termination Type Temperature or Pressure, Time, Defrost Initiation Time
graingerSKU: 20XF94, mscSKU: , zoro_no: G6658093, mongo_id: 65bbe6de3aaddbd5a905b237

Web Price

$212.49 / each

Qty

Product Details

Amps 40 A

Application Compatibilities Commercial Refrigeration; Walk-in Freezer; Walk-in Cooler

Applications Walk-in Refrigeration Cooler/Freezer

Backup Protection Time None

Contact Type 1 NO/1 NC

Country of Origin (subject to change) Mexico

Defrost Initiation Time

Defrost LED Indicator Red

Defrost Time (Minutes) 15 to 1425

Electrical Life 50, 000 operations at full load

Enclosure Material Plastic

Enclosure Type Outdoor type 3R plastic

Features Improved relay performance; Automatically detects and adjusts input voltages (120-240 VAC); Moisture resistant conformal-coated board; Time Initiated, Temperature, Pressure or Time Terminated; Captive trippers are field adjustable to 15-minute intervals; No tools required Ã¢ÂÂ snaps into alternative enclosures; Moisture resistant conformal-coated board; LED indicators for defrost and refrigeration cycles; Defrost cycles are programmed independently; Real-time clock face for quick, easy and accurate setting

Has Captive Trippers Yes

Has Captive Trippers CVL Yes

Has Real-time Clock Face Yes

Has Realtime Clock Face CVL Yes

Input Voltage Range(s) 120/240 VAC, 60 Hz

Input Voltage Ranges 120/240 VAC, 60 Hz

LED Defrost Indicator Red

Market Commercial

Max. On/Off Cycles 48 Per Day

Maximum On Off Time 23 hours, 45 min

Maximum ON/OFF Times 23 hours, 45 min

Mechanism Type Electromechanical

Minimum On Off Time 15 min

Minimum ON/OFF Times 15 min

Motor Load Ratings 1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC

Motor Load Ratings Ranges 1 HP, 16 FLA, 96 LRA @ 120 VAC; 2 HP, 12 FLA, 72 LRA @ 240 VAC

Mounting Options Bracket

On Off Operations 48

Operating Humidity 0-95% RH, Non-condensing

Operating Temperature Max 104ÃÂ°C

Operating Temperature Max (ÃÂ°F) 104

Operating Temperature Min -40ÃÂ°C

Operating Temperature Min (ÃÂ°F) -40

Package Quantity 1

Packaging Applications Hospitals; Universities; Convenience Stores; Restaurants; Food Storage Warehouses; Food Processing Facilities; Food Service Facilities; Nursing Homes; Medium and Low-Temperature Commercial Refrigeration Systems; Healthcare Facilities

Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz

Resistive Load Ratings 40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz

Resistive Load Ratings Ranges 40 A, 120-240 VAC

Solutions Refrigeration

Switch Type 1 SPDT, 1 NC SPST

Termination Type Temperature or Pressure, Time

Time Initiation Time

Time Termination Temperature; Pressure; Time

UL Cerfication File Number #E10694

UL Certification cULus

Voltage 120/240V AC

Voltage Selection Type Auto Voltage
