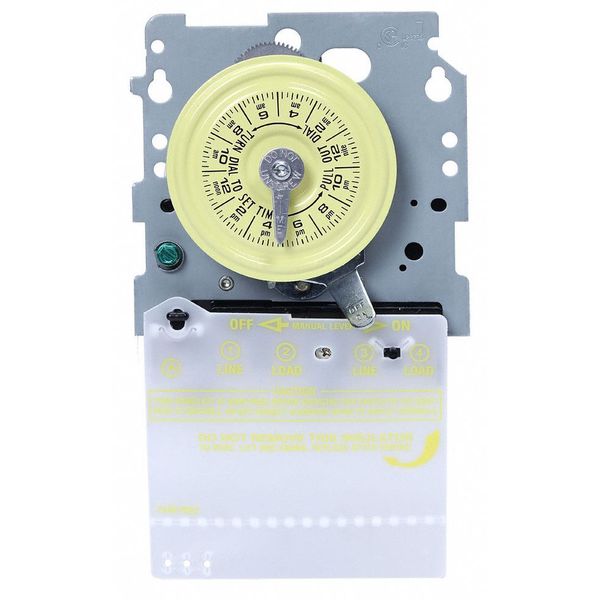

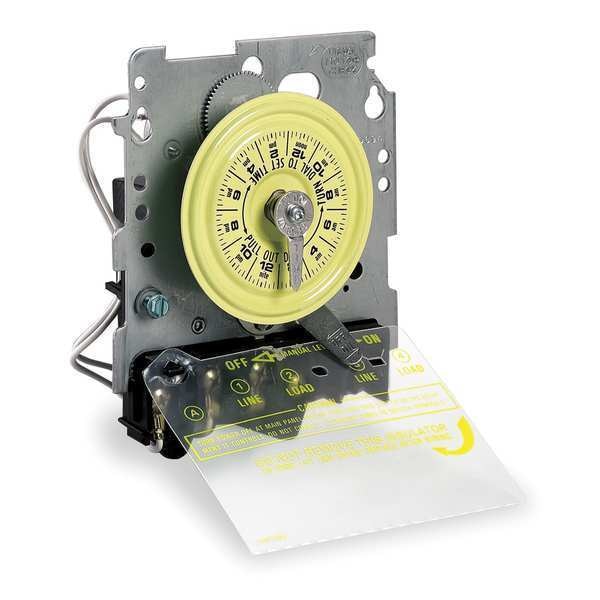

Dial Timer Mechanism

SKU
Brand Intermatic
Categories
Description Dial Timer Mechanism, Description/Special Features for Replacement or Specialized Applications, Time Switches, For Use With Grainger Items 2E022, 4E024; Intermatic T103, T103P Timers
graingerSKU: 4A213, mscSKU: , zoro_no: G0770314, mongo_id: 65bbe8d122d7a989a9919ad4

Web Price

$122.24 / each

Qty

Product Details

Accessory Type Dial Timer Mechanism

Application Compatibilities LED; HID

Applications Timing/Scheduling ON/OFF; Indoor Lighting Control

Country of Origin (subject to change) Mexico

CSA Certification cCSAus

Description/Special Features for Replacement or Specialized Applications, Time Switches

Electronic Ballast 16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC

Electronic Ballast Load Ratings 16 A, 120 VAC; 16 A, 208 VAC; 16 A, 240 VAC; 16 A, 277 VAC

Electronic Ballast Load Ratings Ranges 16 A, 120-277 VAC

Enclosure Type N/A - Mechanism only

Features Highest motor load ratings in the industry; 12 ON/OFF operations per day; One ON and one OFF tripper included; Can be installed in most Intermatic enclosures; Available with pool heater protection; Teeter-type terminals for multiple load connections; Can be installed in most Intermatic enclosures

For Use With Grainger Items 2E022, 4E024; Intermatic T103, T103P Timers

For Use With Mfr. Model Number T103, T103P

Has Manual Override Yes

Has Manual Override CVL Yes

Heater Control Output 10 A, 250 VAC MAX, 60 Hz

Inductive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz

Inductive Load Ratings 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz

Inductive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz

Input Voltage Range(s) 120 VAC, 60 Hz

Input Voltage Ranges 120 VAC, 60 Hz

Market Commercial; Industrial

Maximum On Off Operations 12

Maximum ON/OFF Operations 12

Maximum Power Consumption (W) 3 W

Minimum On Off Time 1 hour

Minimum ON/OFF Times 1 hour

Motor Load Ratings 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz

Motor Load Ratings Ranges 2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz

Number Of Circuits 1

Number Of Trippers Included 1 ON/1 OFF

Operating Temperature Max 130ÃÂ°C

Operating Temperature Max (ÃÂ°F) 130

Operating Temperature Min -40ÃÂ°C

Operating Temperature Min (ÃÂ°F) -40

Package Quantity 1

Packaging Applications Indoor/Outdoor Lighting; Signs; Filters; Electric Fences; Fans; Conveyors; Pool Heaters; Blowers; Pumps; Other Electrical loads

Pilot Duty (NO) 1000 VA, 120-240 VAC, 60 Hz

Pilot Duty Load Ratings 1000 VA, 120-240 VAC, 60 Hz

Pilot Duty Load Ratings Ranges 1000 VA, 120-240 VAC, 60 Hz

Power Consumption Max W 3 W

Resistive 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz

Resistive Load Ratings 40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz

Resistive Load Ratings Ranges 40 A, 120-240 VAC, 60 Hz

Skipper Wheel Not Included

Skipper Wheel Operation Mode Not Included

Solutions Machinery & Pumps; Panel Integrators

Switch Type DPST

Tungsten (NO) 40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
