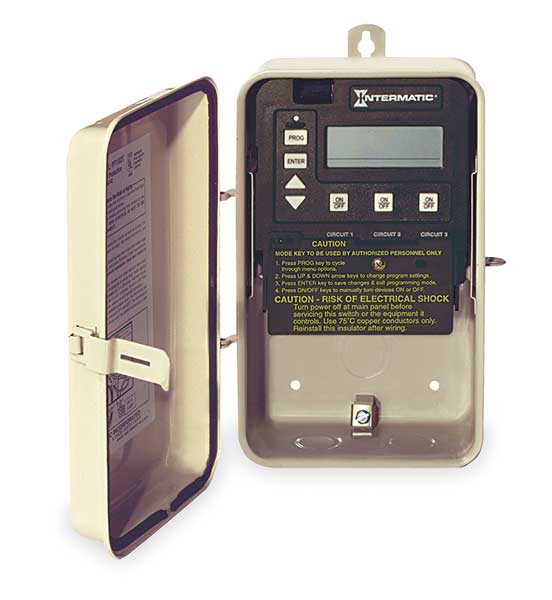

Digital Timer, 24 hr., 3 SPST, 120/240V

SKU
Brand Intermatic
Categories
Description Electronic Timer, Number of Channels 3, Contact Form SPST, Voltage 120/240V AC, Amps 20 A, Events Available - Electronic Timer 6, Available Actions - Electronic Timer On/Off, Event Allocation - Electronic Timer 1 On/Off Action = 2 Events, Enclosure Metal, Mounting Wall, Number of Poles 3, Min. Time Setting 1 min, Max. Time Setting 24 hr, NEMA Rating 3R, Color Gray, Backup Time 36 hr, Operating Temp. -40 to 155 F, Depth 3 5/8 in, Width 5 1/2 in, Standards CSA/C-US

Web Price

$491.24 / each

Qty

Product Details

Amps 20 A

Available Actions - Electronic Timer On/Off

Backup Time 36 hr

Color Gray

Contact Form SPST

Depth 3 5/8 in

Enclosure Metal

Enclosure Type Outdoor type 3R metal

Event Allocation - Electronic Timer 1 On/Off Action = 2 Events

Events Available - Electronic Timer 6

Features Controls single- and two-speed pumps and cleaner/booster pumps; Three ON/OFF events per circuit per day; Seven preprogrammed modes; Freeze and heater protection; LCD readout; Multivoltage input and output; Countdown and override features enable programs to be overridden and automatically resumed without requiring the user to reprogram the system

Height 9.375 in

Max. On/Off Cycles 3

Max. Time Setting 24 hr

Min. Time Setting 1 min

Mounting Wall

NEMA Rating 3R

Number of Channels 3

Number of Poles 3

Operating Temp. -40 to 155 F

Operation Mode 24 hour

Standards CSA/C-US

Switch Type 3-SPST
