Home / Electromechanical Timer, 24 Hour, Dpst

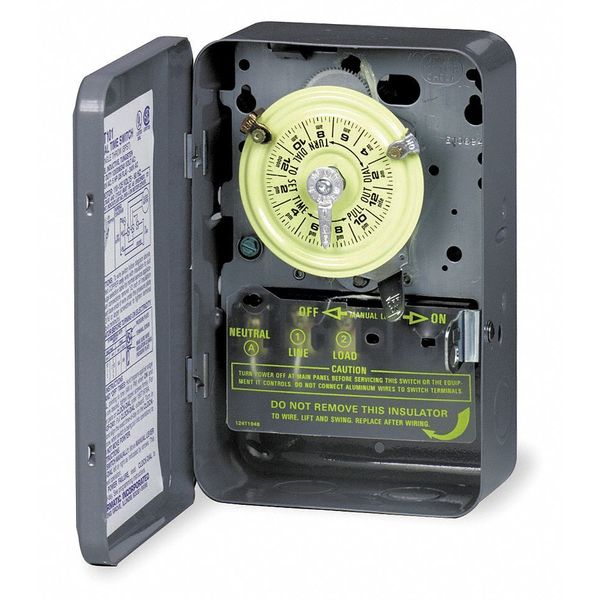

Electromechanical Timer, 24 Hour, Dpst

Electromechanical Timer, 24 Hour, Dpst

  • Intermatic
  • Electromechanical Timer, 24-Hour, Number of Poles 2, Contact Form DPST-NO, Voltage 120V AC, Amps 40 A, Contact HP @ 120V 2 hp, Contact HP @ 240V 5 hp, Day Skipper No, Enclosure Type Steel, Finish Metal Enclosure has Gray Enamel, NEMA Rating 1, Min. Time Setting 1 hr, Max. Time Setting 23 hr, Max. On/Off Cycles 12, Width 5 in, Depth 3 in, Height 7 13/16 in, Number of Trippers Included 2, Extra Trippers 2E054

    graingerSKU: 2.00E+22, mscSKU: 54025119, zoro_no: G2547036, mongo_id: 65bbe7379a749db8227266a8

Web Price
$95.29 / each
Qty

Product Details

40 A
LED; HID
Timing/Scheduling ON/OFF; Indoor Lighting Control
DPST-NO
2 hp
5 hp
Mexico
cCSAus
No
3 in
Furnished with a Maximum of 1 Trippers, Manual On/Off Override does not Alter Program, Snap-out Timing Mechanism, Up to 12 On/Off Settings Per Day
16 A, 120 VAC, 16 A, 208 VAC, 16 A, 240 VAC, 16 A, 277 VAC
16 A, 120 VAC; 16 A, 208 VAC; 16 A, 240 VAC; 16 A, 277 VAC
16 A, 120-277 VAC
Steel
2E054
Highest motor load ratings in the industry; 12 ON/OFF operations per day; One ON and one OFF tripper included; Can be installed in most Intermatic enclosures; Available with pool heater protection; Teeter-type terminals for multiple load connections
Metal Enclosure has Gray Enamel
Yes
Yes
7 13/16 in
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
40 A, 120-240 VAC, 60 Hz
120 VAC, 60 Hz
120 VAC, 60 Hz
(1) combination 1/2 - 3/4
(2) combination 1/2 - 3/4
Commercial; Industrial
12
23 hr
12
12
3 W
1 hr
1 hour
1 hour
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
2 HP, 24 FLA @ 120 VAC, 60 Hz; 5 HP, 28 FLA @ 240 VAC, 60 Hz
Hole Wall
1
24 hr
1
2
2
130°C
130
-40°C
-40
24 hour
1
Indoor/Outdoor Lighting; Signs; Filters; Electric Fences; Fans; Conveyors; Pool Heaters; Blowers; Pumps
1000 VA, 120-240 VAC, 60 Hz
1000 VA, 120-240 VAC, 60 Hz
1000 VA, 120-240 VAC, 60 Hz
3 W
3 7/16 in; 87.3 mm
3.4375
7 7/8 in; 200 mm
7.875
5 1/8 in; 130.2 mm
5.125
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
40 A, 240 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 120 VAC, 60 Hz
40 A, 120-240 VAC, 60 Hz
Not Included
Not Included
Machinery & Pumps; Panel Integrators
DPST
1 hr. to 23 hr.
1 hr
40 A, 120 VAC, 60 Hz, 40 A, 208 VAC, 60 Hz, 40 A, 240 VAC, 60 Hz
40 A, 120 VAC, 60 Hz; 40 A, 208 VAC, 60 Hz; 40 A, 240 VAC, 60 Hz
40 A, 120-240 VAC, 60 Hz
40 A, 120-240 VAC, 60 Hz
24-Hour
UL917
cULus
120V AC
5 in
#8 AWG
#14 AWG
Terminals
