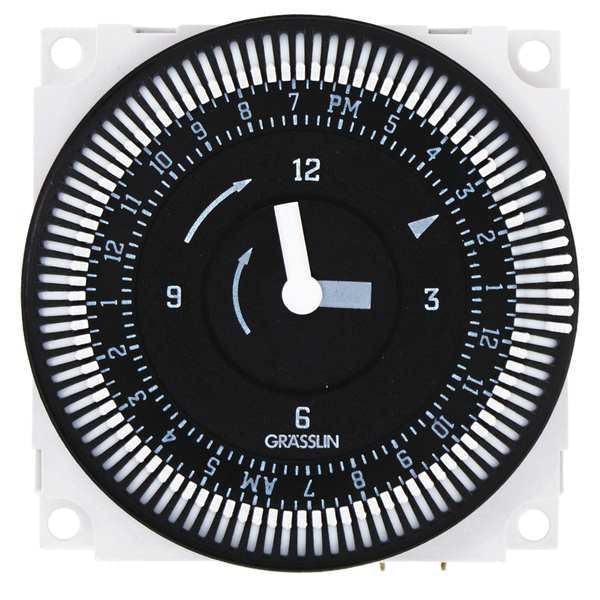

Electromechanical Timer, 24-Hour, SPDT

SKU
Brand Intermatic
Categories
Description Electromechanical Timer, 24-Hour, Number of Poles 2, Contact Form SPDT, Voltage 120V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper No, Enclosure Type Steel, NEMA Rating 3R, Min. Time Setting 15 min, Max. Time Setting 23 hr 45 min, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 2 5/16 in, Height 3 1/2 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features True Clock Face, Mount Panel
graingerSKU: 20XF18, mscSKU: , zoro_no: G6584742, mongo_id: 65bbe76f3aaddbd5a9094547

Web Price

$64.36 / each

Qty

Product Details

Amps 21 A

Application Compatibilities Incandescent; Fluorescent; CFL; LED

Applications Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising

Clock Drive Type Synchronous

Contact Form SPDT

Contact HP @ 120V 1 hp

Contact HP @ 240V 2 hp

Country of Origin (subject to change) Mexico

CSA Certification cCSAus

Day Skipper No

Depth 2 5/16 in

Description/Special Features True Clock Face

Enclosure Type STEEL

Features 21 A SPDT Switch; Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models; 72-hour carry-over battery backup on Q models; Noise immune Ã¢ÂÂ ideal for robust applications; Synchronous drive or quartz drive Q models with self-recharging battery backup; True clock face, easy-to-set; Available with or without override; Compact size; Clear plastic cover (DC-FME-A), sold separately; Standalone or with indoor/outdoor enclosure, sold separately

Has Captive Trippers Yes

Has Captive Trippers CVL Yes

Has Real-time Clock Face Yes

Has Realtime Clock Face CVL Yes

Height 3 1/2 in

Market Commercial; Industrial

Max. On/Off Cycles 48

Max. Time Setting 23 hr 45 min

Maximum Cycle Time 24 hrs

Mechanism Type Electromechanical

Min. Time Setting 15 min

Motor Load Ratings 1 HP, 120 VAC; 2 HP, 250 VAC

Motor Load Ratings Ranges 1 HP, 120 VAC; 2 HP, 250 VAC

Mount Panel

Mounting Options Panel

NEMA Rating 3R

Nominal Max. Time Setting 24 hr

Number of Poles 2

Number of Trippers Included 96

Operating Humidity 0 to 95%, Non-condensing

Operating Temp. -40 Degrees to 185 Degrees F

Operating Temperature Max 185ÃÂ°C

Operating Temperature Max (ÃÂ°F) 185

Operating Temperature Min -40ÃÂ°C

Operating Temperature Min (ÃÂ°F) -40

Package Quantity 1

Packaging Applications Commercial Refrigeration; Pool & Spa; Ventilation; Hot Water Pump Circulation; Hydroponic Systems; Lighting Panel Control; Landscape Lighting; Bug and Pest Control Systems; Aerobic Waste Water Systems

Power Consumption Max 1 VA

Product Depth 1 1/4 in; 32 mm

Product Depth (in) 1.25

Product Height 2 23/64 in; 60 mm

Product Height (in) 2.359375

Product Width 2 23/64 in; 60 mm

Product Width (in) 2.359375

Resistive 21 A, 250 VAC

Resistive Load Ratings 21 A, 250 VAC

Shortest Switching Time ON/OFF 15 minutes

Solutions Refrigeration; Ventilation; Water Treatment; Generator Exercising

Standards AHRI, CE, cRUus, CSA, UL
