Home / Electromechanical Timer, 7-Day, SPDT

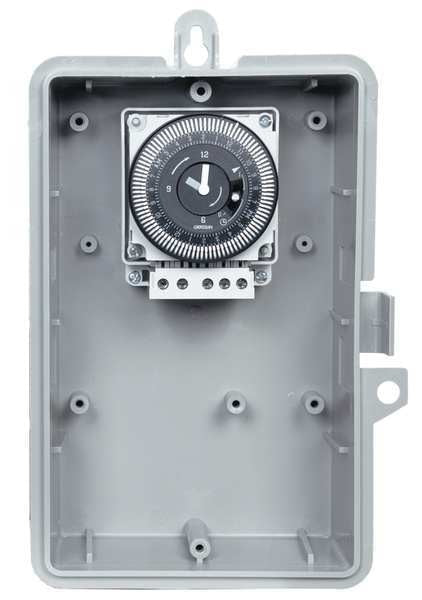

Electromechanical Timer, 7-Day, SPDT

Electromechanical Timer, 7-Day, SPDT

  • Intermatic
  • Electromechanical Timer, 7-Day, Number of Poles 1, Contact Form SPDT, Voltage 120V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper Yes, Enclosure Type Polycarbonate, Finish Gray, NEMA Rating 1, Min. Time Setting 2 hr, Max. Time Setting 6 days 22 hr, Max. On/Off Cycles 48, Width 7 5/16 in, Depth 4 5/16 in, Height 11 3/4 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features True Clock Face, Mount Surface

    graingerSKU: 20XF44, mscSKU: , zoro_no: G6558194, mongo_id: 65bbe88a9a749db8227993aa

Web Price
$204.99 / each
Qty

Product Details

21 A
Incandescent; Fluorescent; CFL; LED
Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising
Synchronous
SPDT
1 hp
2 hp
Mexico
Yes
4 5/16 in
True Clock Face
Polycarbonate
21 A SPDT Switch; UL Type 1 indoor or Type 3R outdoor plastic enclosure; Manual 3-way override; Captive trippers with 15-minute intervals on 24-hour models and 2-hour intervals on 7-day models; True clock face, easy to set; Finger-safe terminals; Enclosure provides space for field-added contactor or other accessories; Synchronous drive or quartz drive (Q models) with self-charging battery backup
Gray
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
11 3/4 in
120 VAC, 60 Hz
120 VAC, 60 Hz
Commercial; Industrial
48
6 days 22 hr
7 days
Electromechanical
2 hr
2 hrs
1 HP, 120 VAC; 2 HP, 250 VAC
1 HP, 120 VAC; 2 HP, 250 VAC
Surface
Wall
1
7 day
1
96
0 to 95%, Non-condensing
-40 Degrees to 185 Degrees F
185°C
185
-40°C
-40
1
Lighting Control; HVAC; Pumps/Motor/Fan Control; General Electrical Circuits; Commercial Refrigeration
1 VA
3 3/4 in; 95 mm
3.75
10 in; 254 mm
10
6 1/2 in; 165 mm
6.5
21 A, 250 VAC, 60 Hz
21 A, 250 VAC, 60 Hz
ON/OFF 2 hours
Refrigeration; Ventilation; Water Treatment; Generator Exercising
cULus
SPDT
2 hr. to 6 days 22 hr.
2 hrs
1350 W, 120 VAC, 60 Hz
1350 W, 120 VAC, 60 Hz
7-Day
E10694
cULus
120V AC
7 5/16 in
#12 AWG
Screw terminal accepts up to #12 AWG wire
