Home / Electromechanical Timer, 7-Day, SPDT

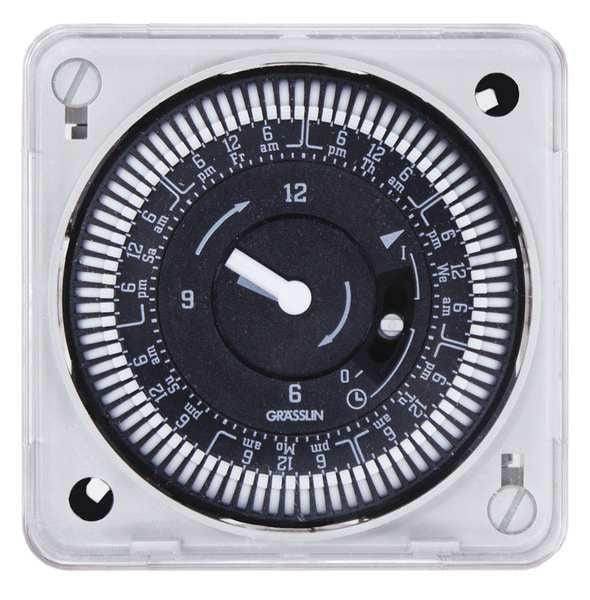

Electromechanical Timer, 7-Day, SPDT

SKU
Brand Intermatic
Categories
Description Electromechanical Timer, 7-Day, Number of Poles 2, Contact Form SPDT, Voltage 120V AC, Amps 21 A, Contact HP @ 120V 1 hp, Contact HP @ 240V 2 hp, Day Skipper Yes, Enclosure Type Plastic, Min. Time Setting 2 hr, Max. Time Setting 6 days 22 hr, Max. On/Off Cycles 48, Width 3 5/16 in, Depth 2 5/16 in, Height 3 51/64 in, Number of Trippers Included 96, Operating Temp. -40 Degrees to 185 Degrees F, Description/Special Features Override Switch, Synchronous Motor, Mount Flush
graingerSKU: 20XF87, mscSKU: , zoro_no: G6425982, mongo_id: 65bbe88b22d7a989a98fd0ee

Web Price

$183.74 / each

Qty

Product Details

Amps 21 A

Application Compatibilities Incandescent; Fluorescent; CFL; LED

Applications Refrigeration Merchandiser; Air Movement & Ventilation; Aeration; Septic Treatment; Generator Exercising

Clock Drive Type Synchronous

Contact Form SPDT

Contact HP @ 120V 1 hp

Contact HP @ 240V 2 hp

Country of Origin (subject to change) Mexico

CSA Certification cCSAus

Cut Out Height 2 5/8 in; 66 mm

Cut Out Width 66 in; 66 mm

Day Skipper Yes

Depth 2 5/16 in

Description/Special Features Override Switch, Synchronous Motor

Enclosure Type Plastic

Features 21 A SPDT switch; Synchronous drive or quartz drive (Q Models) with self-recharging battery backup; 72-hour carry-over battery backup on Q models; Captive trippers with 2-hour intervals; Available with or without override; True clock face, easy-to-set; Surface/DIN rail or flush mount; Clear plastic dust cover; Compact size

Has Captive Trippers Yes

Has Captive Trippers CVL Yes

Has Override Switch Yes

Has Override Switch CVL Yes

Has Real-time Clock Face Yes

Has Realtime Clock Face CVL Yes

Height 3 51/64 in

Input Voltage Range(s) 120 VAC, 60 Hz

Input Voltage Ranges 120 VAC, 60 Hz

Market Commercial; Industrial

Max. On/Off Cycles 48

Max. Time Setting 6 days 22 hr

Maximum Cycle Time 7 days

Mechanism Type Electromechanical

Min. Time Setting 2 hr

Minimum Cycle Time 2 hrs

Motor Load Ratings 1 HP, 120 VAC; 2 HP, 250 VAC

Motor Load Ratings Ranges 1 HP, 120 VAC; 2 HP, 250 VAC

Mount Flush

Mounting Options Flush

NEMA Rating 3R

Nominal Max. Time Setting 7 day

Number of Poles 2

Number of Trippers Included 96

Operating Humidity 0 to 95%, Non-condensing

Operating Temp. -40 Degrees to 185 Degrees F

Operating Temperature Max 185ÃÂ°C

Operating Temperature Max (ÃÂ°F) 185

Operating Temperature Min -40ÃÂ°C

Operating Temperature Min (ÃÂ°F) -40

Package Quantity 1

Packaging Applications Commercial Refrigeration; Pumps/Motor/Fan Control; Hydroponic Systems; Aerobic Wastewater Treatment Systems; Boilers; Generator Exercising

Power Consumption Max 0.5 VA

Product Depth 1 23/64 in; 34.5 mm

Product Depth (in) 1.359375

Product Height 2 39/64 in; 66 mm

Product Height (in) 2.609375

Product Width 2 53/64 in; 72 mm

Product Width (in) 2.828125

Resistive 21 A, 250 VAC

Resistive Load Ratings 21 A, 250 VAC

Shortest Switching Time ON/OFF 2 hours

Solutions Refrigeration; Ventilation; Water Treatment; Generator Exercising

Standards AHRI, CE, cRUus, CSA, UL
