Home / Photocontrol, 105 to 305VAC, Turn-Lock

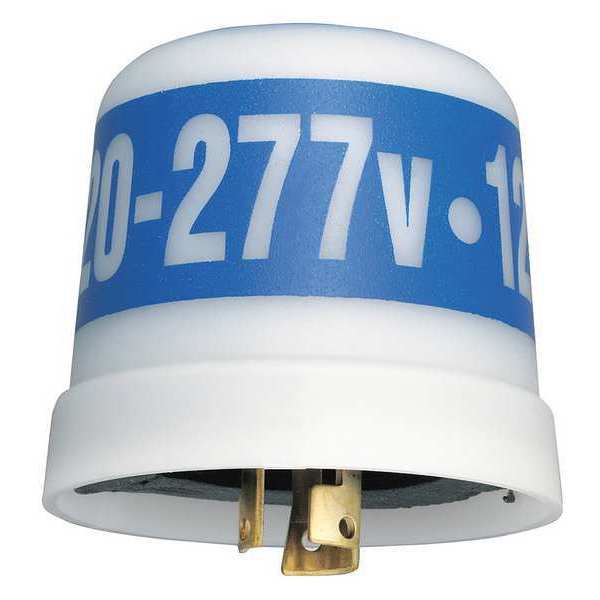

Photocontrol, 105 to 305VAC, Turn-Lock

Photocontrol, 105 to 305VAC, Turn-Lock

  • Intermatic
  • Photocontrol, Mounting Turn-Lock, Voltage 105 to 305V AC, Max. Wattage 1,000, Max. Ballast Amps 6 A, 1.2 to 3.0 Foot Candles On, 2 to 5 Foot Candles Off, Color Translucent, Temp. Range -40 Degrees to 158 Degrees F, Length 5 51/64 in, Width 3 1/2 in, Depth 3 1/2 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards CSA, cUS, RoHS, Includes Locking Nut, Washer Gasket

    graingerSKU: 20XE70, mscSKU: , zoro_no: G6499394, mongo_id: 65bbe7ba9a749db822752ab2

Web Price
$27.99 / each
Qty

Product Details

Photocontrol
2.25 fc
1.5 fc
LED; Incandescent; HID
Outdoor Lighting Control
Translucent
SPST
Mexico
White with Blue Band
3 1/2 in
Built-In Delay to Prevent Unwanted OFF Switching, LED Rated
6 A, 120 VAC, 50 Hz, 6 A, 120 VAC, 60 Hz, 6 A, 208 VAC, 50 Hz, 6 A, 208 VAC, 60 Hz, 6 A, 240 VAC, 50 Hz, 6 A, 240 VAC, 60 Hz, 6 A, 277 VAC, 50 Hz, 6 A, 277 VAC, 60 Hz
6 A, 120 VAC, 50 Hz; 6 A, 208 VAC, 50 Hz; 6 A, 240 VAC, 50 Hz; 6 A, 277 VAC, 50 Hz; 6 A, 120 VAC, 60 Hz; 6 A, 208 VAC, 60 Hz; 6 A, 240 VAC, 60 Hz; 6 A, 277 VAC, 60 Hz
6 A, 120-277 VAC, 50/60 Hz
Raintight
10000
15
ON
Non-drift silicon light sensor with IR filter; DC relay with zero-crossing circuitry for extended life; All components meet 15-year life expectancy; Conformal coated PCB; Exceeds 10,000 ON/OFF switching cycles; Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC); 510 J MOV surge protection; High precision, microprocessor-controlled zero-cross switching, individually calibrated to extend the life of 20 A relay independent of load being switched
2 to 5
1.2 to 3.0
Area Lightning, Floodlights, Roadways, Variable Sky Conditions
Polycarbonate
Locking Nut, Washer Gasket
120-277 VAC, 50/60 Hz (Nominal Voltage)
120-277 VAC, 50/60 Hz
5 51/64 in
5 51/64 in
1800 VA
1800 VA
1800 VA
1800 VA
8 yr
Commercial; Utility; Industrial
6 A
1,000
Turn-Lock
158 °C
158
-40 °C
-40
102-305 VAC
Title 20; Ansi C136.10
1
Exterior Lighting; Street Lighting; Parking Lot; Pedestrian Pathway Lighting; Landscape Lighting
Relay
Silicon Diode
Silicon Diode
Side
Locking type
Relay
Electronic
3.375 in; 85.8 mm
2 3/4 in; 69.9 mm
2.75
Instant ON; 2 sec to 5 sec OFF
Dusk to Dawn
Lighting Control; Panel Integrators
CSA, cUS, RoHS
510 J MOV
-40 Degrees to 158 Degrees F
1000 W
1000 W
1000 W
1000 W
cULus
Outdoor
105 to 305V AC
3 1/2 in
