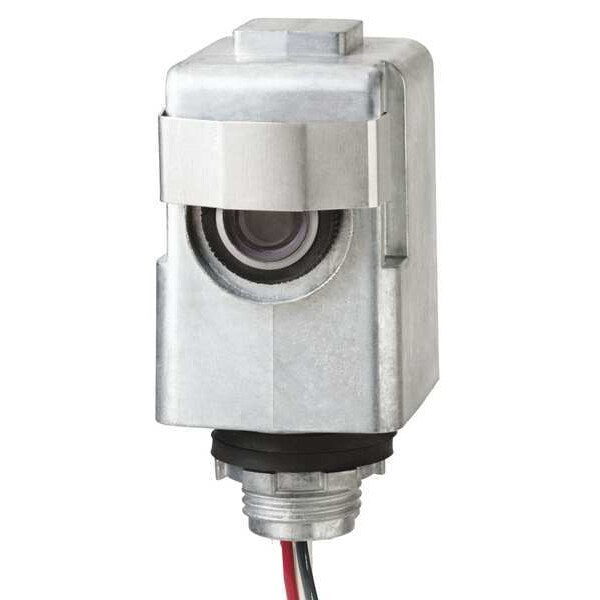

Photocontrol, 208 to 277VAC, 3100 to 4150W

Photocontrol, 208 to 277VAC, 3100 to 4150W

  • Intermatic
  • Photocontrol, Mounting Stem, Voltage 208 to 277V AC, Max. Wattage 4,150, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 3 in, Width 1 9/16 in, Depth 1 9/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Die-Cast, Setting Dusk to Dawn, Standards CSA, UL, Includes Locking Nut, Washer Gasket

    graingerSKU: 20XE99, mscSKU: , zoro_no: G6832165, mongo_id: 65bbe69e3aaddbd5a903fa6f

Web Price
$32.49 / each
Qty

Product Details

Photocontrol
3 to 15 fc
1 to 5 fc
HID; Fluorescent; Incandescent
Outdoor Lighting Control
Gray
SPST
Mexico
Gray
CSA
1 9/16 in
Built-In Delay to Prevent Unwanted OFF Switching
Raintight
3650
5
ON
Mechanical bimetal switch with Cadmium Sulfide photocell; Delay feature prevents unwanted OFF switching; Die-cast metal housing; 1â„2-14 NPSM threaded stem; Washer gasket and locking nut included; #18 AWG, 9 wire leads
3 to 15
1.0 to 5.0
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Die-Cast
Locking Nut, Washer Gasket
208-277 VAC, 50/60 Hz
208-277 VAC, 50/60 Hz
3 in
3 in
8.3 A, 1700-2300 VA
8.3 A, 1700-2300 VA
8.3 A, 1700-2300 VA
8.3 A, 1700-2300 VA
2 yr
Commercial; Residential; Industrial
8.3 A
15 A
4,150
Stem
158 °C
158
-40 °C
-40
Title 20
1
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting
Mechanical Bimetal
Cadmium Sulfide
Cadmium Sulfide
Side
Stem Mount
Mechanical Bimetal
Thermal
1 9/16 in; 39.7 mm
1.5625
3 in; 76.2 mm
3
1 9/16 in; 39.7 mm
1.5625
30 sec to 90 sec
Dusk to Dawn
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
CSA, UL
-40 Degrees to 158 Degrees F
15 A, 3100-4150 W
15 A, 3100-4150 W
15 A, 3100-4150 W
15 A, 3100-4150 W
UL
Outdoor
208 to 277V AC
1 9/16 in
9 in; 228.6 mm
#18 AWG
Wire leads
