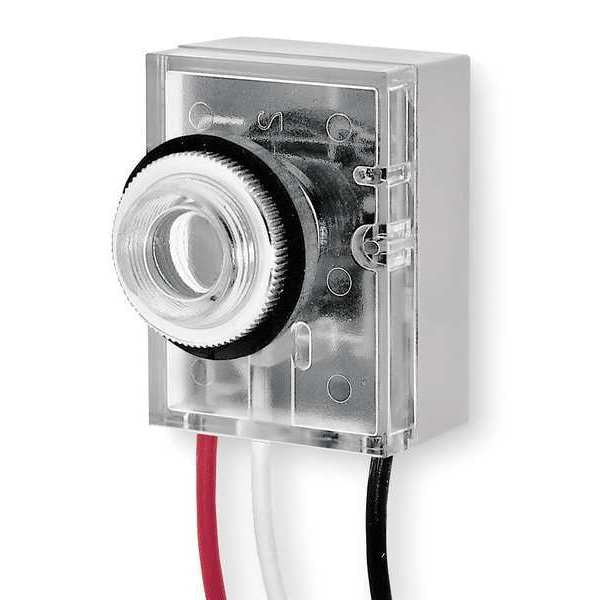

Photocontrol, Fixed, 120VAC

Photocontrol, Fixed, 120VAC

  • Intermatic
  • Photocontrol, Mounting Fixed, Voltage 120V AC, Max. Wattage 1,800, Max. Incandescent Amps 15 A, Max. Ballast Amps 8.3 A, 1.0 to 5.0 Foot Candles On, 3 to 15 Foot Candles Off, Color Translucent, Temp. Range -40 Degrees to 158 Degrees F, Length 1 13/16 in, Width 1 5/16 in, Depth 13/16 in, Enclosure Type Raintight, Contact Form SPST, Housing Material Polycarbonate, Setting Dusk to Dawn, Standards CSA, UL, Includes Waterproof Wall Plate with Neoprene Gasket

    graingerSKU: 6P005, mscSKU: 54026547, zoro_no: G1898251, mongo_id: 65bbe7ba9a749db822752ab1

Web Price
$17.86 / each
Qty

Product Details

Photocontrol
3 to 15 fc
1 to 5 fc
HID; Fluorescent; Incandescent
Outdoor Lighting Control
Translucent
SPST
Mexico
Gray
cCSAus
13/16 in
Delay Action Elimates Loads Switching Off Due To Car Headlights, Lightning, Mount In Approved FS Box or Fixture with 11/16 in or 3/4 in dia Hole
Raintight
3650
5
ON
Mechanical bimetal switch with Cadmium Sulfide photocell; Compact size fits into standard outlet box, post lamp, wall pack and other lighting fixtures; Delay feature prevents unwanted OFF switching; 3/8-18 NPSM, 3/4 long stem with locking nut and washer gasket
3 to 15
1.0 to 5.0
Area Lighting, Billboard Lighting, Car Lot Lighting, Municipal Lighting, Parking Lot Lighting, Roadway Lighting, Security Lighting, Street Lighting
Polycarbonate
Waterproof Wall Plate with Neoprene Gasket
120 VAC, 50/60 Hz
120 VAC, 50/60 Hz
1 13/16 in
1 13/16 in
8.3 A, 1000 VA
8.3 A, 1000 VA
8.3 A, 1000 VA
8.3 A, 1000 VA
2 yr
Commercial; Residential; Industrial
8.3 A
15 A
1,800
Fixed
158 °C
158
-40 °C
-40
Title 20
1
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Pedestrian Pathway Lighting; Street Lighting
Mechanical Bimetal
Cadmium Sulfide
Cadmium Sulfide
Front
Button
Mechanical Bimetal
Thermal
13/16 in; 20.6 mm
0.811
1 13/16 in; 46 mm
1.813
15/16 in; 23.8 mm
0.938
30 sec to 90 sec
Dusk to Dawn
Comfort & Convenience; Energy Savings; Landscape; Lighting Control; Security; Panel Integrators
CSA, UL
-40 Degrees to 158 Degrees F
15 A, 1800 W
15 A, 1800 W
15 A, 1800 W
15 A, 1800 W
UL
Outdoor
120V AC
1 5/16 in
9 in; 228.6 mm
#18 AWG
Wire leads
