Home / Timer, Spring Wound, 15 Min, SPST, Silver

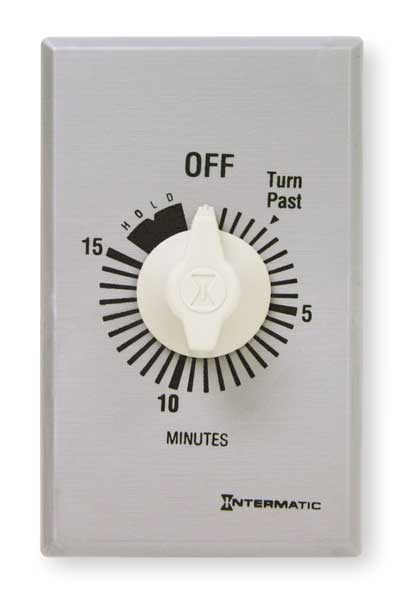

Timer, Spring Wound, 15 Min, SPST, Silver

SKU
Brand Intermatic
Categories
Description Spring-Wound Timer, Timing Range 0 to 15 min, Contact Form SPST, HP @ 120V 1 hp, HP @ 240V 2 hp, Max. Amps @ 125VAC 20 A, Max. Amps @ 250VAC 10 A, Max. Amps @ 277VAC 10 A, Number of Gangs 1, Hold Feature Yes, Faceplate Color Silver, Knob Plastic, Standards CSA Certified (LR3730), UL Listed (E76987)
graingerSKU: 3FXA3, mscSKU: , zoro_no: G1365357, mongo_id: 65bbe7e49a749db82275fc64

Web Price

$43.24 / each

Qty

Product Details

Color Silver

Countdown Time 15 min

Country of Origin (subject to change) Tunisia

Features 15-Minute timer with hold; SPST (Single-Pole Single-Throw); Breaks circuit at end of timing cycle; No electricity required to operate; Replaces any standard or decorator single-gang wall switch; Automatically limits ON time for energy consuming loads; Quick and easy installation; Time-saving up front terminal connection with teeter-type terminals; Brushed metal look switch plate meets NEC requirements (plate is included); Incandescent/fluorescent/CFL/LED compatible

Hold Mode Included Yes

Includes Wall Plate Yes

Input Voltage Range(s) 125-277 VAC, 50/60 Hz

Mechanism Type Analog/Mechanical

Motor Load Ratings Ranges 1 HP, 125 VAC; 2 HP, 250 VAC

Neutral Connection Required No

Operating Temperature Max (ÃÂ°F) 120

Operating Temperature Min (ÃÂ°F) 40

Operation Mode Countdown

Package Quantity 1

Product Depth (in) 1.25

Product Width (in) 1.75
