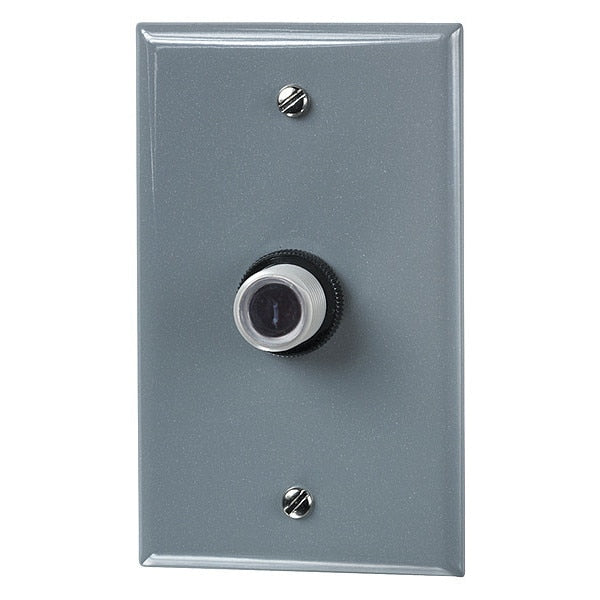

Wall Mount Electronic Photocontrol 120-277V

Wall Mount Electronic Photocontrol 120-277V

  • Intermatic
  • Photocontrol, Mounting Wall, Voltage 120 to 277V AC, Max. Wattage 1,000, Max. Incandescent Amps 6 A, Max. Ballast Amps 6 A, 1.5 Foot Candles On, 4.50 Foot Candles Off, Color Gray, Temp. Range -40 Degrees to 158 Degrees F, Length 2 1/4 in, Width 1 5/16 in, Depth 1 1/4 in, Enclosure Type Polycarbonate, Housing Material Polycarbonate, Standards ANSI C136 P24, California Title 20 Compliant, CSA, UL

    graingerSKU: null, mscSKU: null, zoro_no: G2124475, mongo_id: 65bbe67b3aaddbd5a9031542

Web Price
$31.99 / each
Qty
Minimum order: 12

Product Details

Photocontrol
4.5 fc
1.5 fc
LED; Incandescent; HID
Outdoor Lighting Control
1800 VA
1800 VA
Gray
Mexico
Gray
CSA
1 1/4 in
Non-Drift Silicon Light Sensor with IR Filter, DC Relay with Zero-Crossing Circuitry for Extended Life
6 A, 120 VAC, 50 Hz, 6 A, 120 VAC, 60 Hz, 6 A, 208 VAC, 50 Hz, 6 A, 208 VAC, 60 Hz, 6 A, 240 VAC, 50 Hz, 6 A, 240 VAC, 60 Hz, 6 A, 277 VAC, 50 Hz, 6 A, 277 VAC, 60 Hz
6 A, 120 VAC, 50 Hz; 6 A, 208 VAC, 50 Hz; 6 A, 240 VAC, 50 Hz; 6 A, 277 VAC, 50 Hz; 6 A, 120 VAC, 60 Hz; 6 A, 208 VAC, 60 Hz; 6 A, 240 VAC, 60 Hz; 6 A, 277 VAC, 60 Hz
6 A, 120-277 VAC, 50/60 Hz
Polycarbonate
10000
15
ON
Non-drift silicon light sensor with IR filter; DC relay with zero-crossing circuitry for extended life; Conformal coated PCB; 15-year design life; Exceeds 10,000 ON/OFF switching cycles; Fail ON mode; Ideal for single or multifixture HID and LED installations (up to 1,650 W @ 277 VAC); 255 J MOV surge protection element; Fits standard single-gang in-wall electrical boxes; Wall Plate is included
4.50
1.5
HID, Incandescent, LED
Polycarbonate
120-277 VAC, 50/60 Hz (Nominal Voltage)
120-277 VAC, 50/60 Hz
2 1/4 in
2 1/4 in
8 yr
Commercial; Residential; Industrial
6 A
6 A
1,000
Wall
158 °C
158
-40 °C
-40
102-305 VAC
Title 20; Ansi C136.24
1
Parking Lot Lighting; Landscape Lighting; Exterior Lighting; Street Lighting; Pedestrian Pathway Lighting
Relay
Silicon Diode
Silicon Diode
Front
In-Wall
Relay
Electronic
1 1/4 in; 31.8 mm
1.25
2 1/4 in; 57.2 mm
2.25
1 5/16 in; 33.3 mm
1.3125
Instant ON; 2 sec to 5 sec OFF
Lighting Control; Energy Savings; Landscape; Security; Comfort & Convenience; Panel Integrators
ANSI C136 P24, California Title 20 Compliant, CSA, UL
255 J MOV, 5, 000 A Surge
-40 Degrees to 158 Degrees F
1000 W
1000 W
1000 W
1000 W
UL
Outdoor
120 to 277V AC
1 5/16 in
9 in; 228.6 mm
#18 AWG
Wire leads
