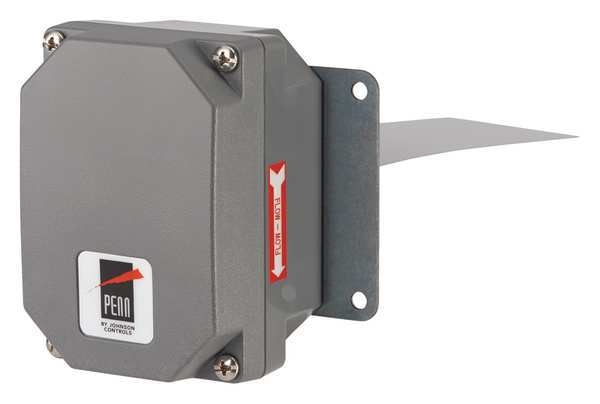

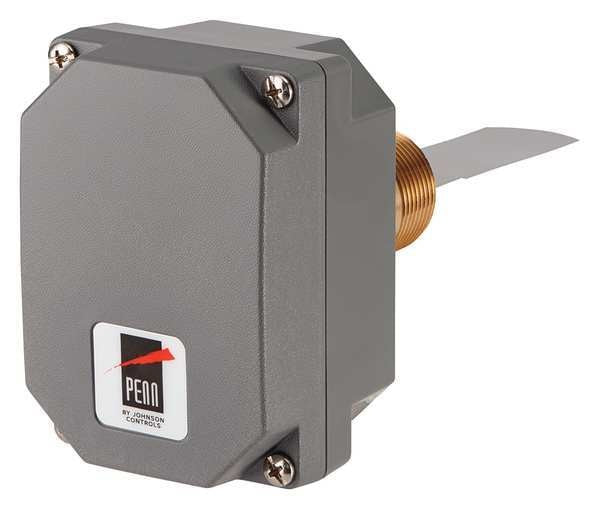

1/2" FNPT SPDT Flow Switch 24V-230V 17 gpm

SKU
Brand Johnson Controls
Categories
Description Flow Switch, Flow Switch Type Paddle, For Pipe Size 1/2 in, Housing Material Stainless Steel, Connection Size 1/2 in, Connection Type FNPT, Flow Rate - Minimum 0.6 gpm, Flow Rate - Maximum 17 gpm, Media Temperature - Minimum -20 Degrees F, Media Temperature - Maximum 250 Degrees F, Switch Type SPDT, Switch Enclosure NEMA 3R, Wetted Material Viton, Contact Rating (AC) 16 A @ 120V (Full Load), Frequency 50 Hz, 60 Hz, Set Point Configuration Adjustable
graingerSKU: 35LZ12, mscSKU: , zoro_no: G0093217, mongo_id: 65bbe79d3aaddbd5a90a5abb

Web Price

$291.24 / each

Qty

Product Details

Ambient Temperature - Maximum 140 Degrees F

Ambient Temperature - Minimum -40 Degrees F

Application F261 Series Flow Switches Respond to Fluid Flow inLines Carrying Water, Ethylene Glycol, or Other Nonhazardous Fluids. These Models Also Work in Applications with Swimming Pool Water and Lubricating Oils.

Body Material Plastic with Stainless Steel Paddle

Compliance CE, RCM Compliant, UL

Connection Size 1/2 in

Connection Size (In.) 1/2 FNPT

Connection Type FNPT

Contact Rating 16A @ 120V AC - Full Load

Contact Rating (AC) 16 A @ 120V (Full Load)

Country of Origin (subject to change) Mexico

Float Switch Contact Form SPDT

Flow Rate 0.6 gpm to 17 gpm

Flow Rate - Maximum 17 gpm

Flow Rate - Minimum 0.6 gpm

Flow Switch Type Paddle

For Pipe Size 1/2 in

For Use With liquids

Frequency 50 Hz, 60 Hz

Horsepower - Maximum 1 hp

Housing Material Stainless Steel

Max. Ambient Temp. (F) 140 Degrees F

Max. Flow GPM 17 gpm

Max. Fluid Temp. (F) 250 Degrees F

Max. HP 1

Max. Pressure 290 psi

Max. Pressure (PSI) 290 psi

Media Temperature - Maximum 250 Degrees F

Media Temperature - Minimum -20 Degrees F

Min. Ambient Temp. (F) -40 Degrees

Min. Flow Rate (GPM) 0.6 gpm

Min. Fluid Temp. (F) -20 Degrees F

Overall Height 3.3 in

Overall Width 6 in

Package Quantity 1

Set Point Configuration Adjustable

Standards CE Certified, cULus Listed, FCC Compliant to CFR47, Part 15, Subpart B, Class B, IC Compliant to Canadian ICES-003, Class B Limits, RCM Compliant, UL 60730, File E6688

Switch Enclosure NEMA 3R

Switch Type SPDT

Type Low Flow

Voltage 24V-230V

Wetted Material Viton

Wetted Materials Viton
