Home / Energy Meter, LED, 18/60VDC Wye/Delta

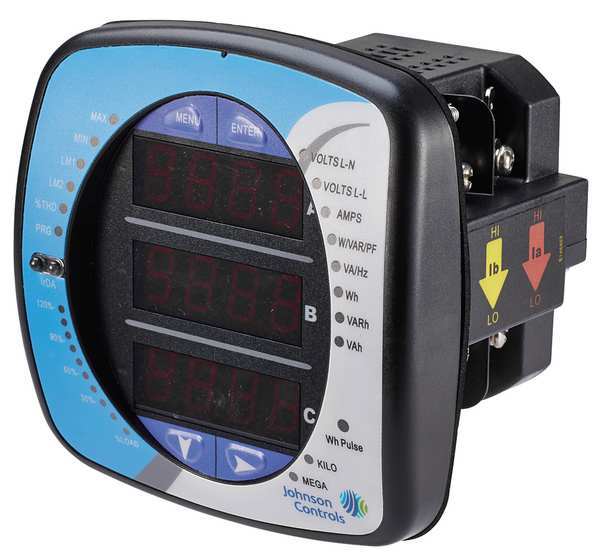

Energy Meter, LED, 18/60VDC Wye/Delta

SKU
Brand Johnson Controls
Categories
Description Power Meter, LED Display, Mounting DIN Rail, Input Voltage 20 to 721V AC Delta, 41 to 416V AC Wye, Amps 5 A, +/-0.20 Percent Accuracy, Measures Amps, Volts, Enclosure Rating NEMA 12, Hz 60, Meter Range 20 to 721V AC Delta, 41 to 416V AC Wye, Phase 3, Operating Temp. Range -4 Degrees to 158 Degrees F, Height 4.85 in, Width 4.85 in, Depth 4.25 in

Web Price

$3,374.99 / each

Qty

Product Details

Accuracy +/-0.20%

Amps 5 A

Country of Origin (subject to change) United States

Depth 4.25 in

Display LED

Enclosure Rating NEMA 12

Features Ability to Set Minimum and Maximum Amps

Height 4.85 in

Hz_ 60

Input Voltage 20 to 721V AC Delta, 41 to 416V AC Wye

Interface BACnetIP

Measures Amps, Volts

Meter Range 20 to 721V AC Delta, 41 to 416V AC Wye

Mounting Din Rail

Operating Temp. Range -4 Degrees to 158 Degrees F

Package Quantity 1

Phase 3

Standards ANSI (IEEE) C37.90.1 Surge withstand, ANSI C12.20 (0.2% accuracy), ANSI C62.41 (Burst), EN61000-6-2 - Immunity for Industrial Environments: 2005, EN61000-6-4 - Emission Standards for Industrial Environments: 2007, EN61326-1 EMC Requirements 2006, IEC62053-22 (0.2% accuracy), UL 61010-1

Width 4.85 in
