Home / Low Voltage Thermostat, 7 or Nonprogrammable Programs, 2 H 2 C, Hardwired

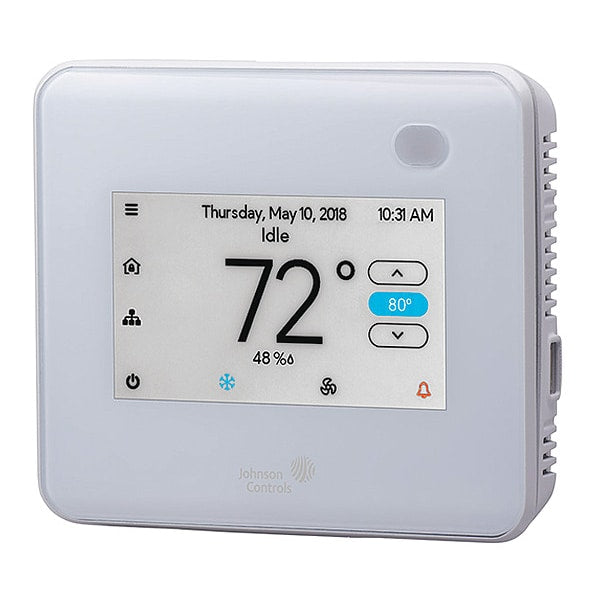

Low Voltage Thermostat, 7 or Nonprogrammable Programs, 2 H 2 C, Hardwired

SKU
Brand Johnson Controls
Categories
Description Low Voltage Thermostat, Stages Heat 2, Stages Cool 2, Temp. Settings per Day 0, Programs per Week 7 or Nonprogrammable, Terminal Designations B1, B2, COS, R, SEN, WiFi Capability No, Display Type Backlit, Dehumidification Control Yes, Power Method Hardwired, Voltage 19 to 30 V AC, Mounting Type Surface Mount, Mounting Location Wall, Color White, Includes USB Port Configuration
graingerSKU: 55LT78, mscSKU: , zoro_no: G2977293, mongo_id: 65bbe93422d7a989a9940f4e

Web Price

$761.24 / each

Qty

Product Details

Backlit Screen Yes

Battery Type Hardwired

Color White

Contact Rating 19 to 30 V AC

Control Type Touch Screen

Country of Origin (subject to change) Mexico

Dehumidification Control Yes

Display Type Backlit

Electrical Connection Type Hardwired

Fan Settings Hi-Med-Low-Auto-Quiet

Frequency 5/6 Hz

Includes USB Port Configuration

Number of Relay Inputs 1

Number of Relay Outputs 1

Occupancy Sensor Compatible with Occupancy Sensor

Operating Humidity Range +/-5% from 20% to 80%

Operating Temperature Range 32 Degrees to 122 Degrees F

Overall Depth 1 7/16 in

Overall Height 4 3/4 in

Overall Width 5 5/8 in

Package Quantity 1

Power Method Hardwired

Programming Capability 7 Day

Programs per Week 7 or Nonprogrammable

Sensor Location Built-In

Smart Connectivity No Connectivity

Stages Cool 2

Stages Heat 2

Standards Australia/NZ Emissions Compliant, BACnet International, CE, FCC Compliant to CFR 47, RCM Mark, Transmission Complies with FCC Part 15.247, UL Listed, UL60730

System Settings Auto-Cool-Heat-Off

System/Fan Settings Auto-Cool-Heat-Off/Auto-Hi-Low-Med-Quiet

Temp. Settings per Day 0

Temperature Control Range +40 Degrees to +90.0 Degrees F, +54 Degrees to +100.0 Degrees F

Temperature Sensitivity +/-0.9 Degrees F

Temperature settings per day 0

Terminal Designations B1, B2, COS, R, SEN

Thermostat Type Low Voltage

Voltage 19 to 30 V AC

WiFi Capability No
