Home / Pneumatic Thermostat, Single Temperature, Heating and Cooling, 2 Pipe

Pneumatic Thermostat, Single Temperature, Heating and Cooling, 2 Pipe

SKU
Brand Johnson Controls
Categories
Description Pneumatic Thermostat, Direct Acting, 2 Pipe, Heating and Cooling, Single Temperature, Control Air Pressure 3 to 15 psi, Air Connections 5/32 In. Barb, Element Type Bi-Metal, Max. Air Pressure 25 psi, Max. Ambient Temp. 135 Degrees F, Mounting Style Horizontal, Height 2-3/32 In., Width 3-1/8 In., Depth 1-3/4 In., Temp. Control Range 55 Degrees to 85 Degrees F, Air Consumption 20 scim, Throttling Range 1 to 5 psi
graingerSKU: 38Y160, mscSKU: , zoro_no: G5063292, mongo_id: 65bbe59e3aaddbd5a9fd6255

Web Price

$334.99 / each

Product Details

1 Pipe / 2 Pipe 2 Pipe

Action Direct

Action Type Direct Acting

Action Type - Pneumatic Thermostats Direct Acting

Air Connection Outside Diameter 3/16 in

Air Connections 5/32 in Barb

Air Consumption 20 scim

Air Flow Output High Volume

Control Air Pressure 3 to 15 psi

Country of Origin (subject to change) Mexico

Cover Color White

Depth 1 3/4 in

Element Type Bi-Metal

Heating / Cooling Heating and Cooling

Height 2 3/32 in

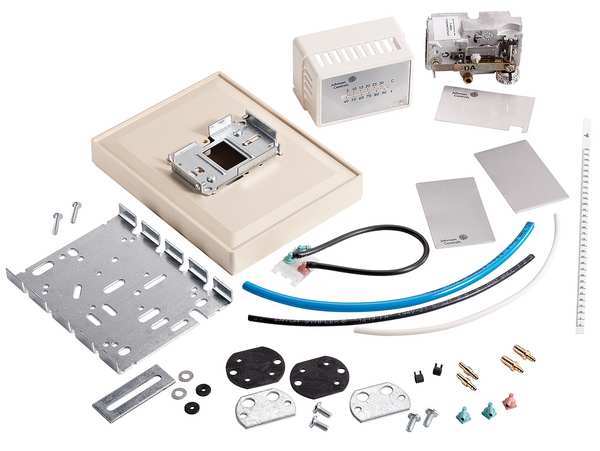

Includes T-4002-201 (D.A.) or T-4002-202 (R.A.) Thermostat, Beige or White Cover, Terminal Connector and Tubing, Tube Couplings and Clamps, Installation Instructions, Faceplates (Horizontal w/window, Horizontal w/logo, Vertical w/logo, and Blank), Cover Plate/Subplate, Adjustable Pipe Head, Mounting Hardware

Manufacturer Model Number T-4002-301

Max. Air Pressure 25 psi

Max. Ambient Temp. 135 Degrees F

Mounting Direction Horizontal

Mounting Direction/Cover Color Horizontal/White

Mounting Style Horizontal

No. of Pipes 2 Pipe

Number of Pipes 2

Number of Pipes/Air Flow Output 2 Pipes, High Volume

Package Quantity 1

Pneumatic Thermostat Type Heating and Cooling

Replaces Brand Barber-Colman, Draeger, Honeywell, Landis & Gyr Powers, Robertshaw

Replaces Brand/Manufacturer Model Number Draeger, Robertshaw, Barber-Colman, Honeywell, Landis & Gyr Powers

Replaces Manufacturer Model Number 2212 Series, ITT/Essen Series, UPC, T-15 Series, T-18 Series (Plastic), T-21 Series Ground Plate, TH180 Series, TH192 Series, TH832 D Series, TK Series, TKR Series, TO900 Series, TO910 Series, TP900 Series, TP910 Series, TP970 Series

Reverse Acting / Direct Acting Direct Acting

Single Temp. / Dual Temp. Single Temperature

Temp. Control Range 55 Degrees to 85 Degrees F

Temperature Output Settings Single Temperature

Temperature Settings Single Temperature

Thermostat Action Direct

Thermostat Action/Application Direct/Heat and Cool

Thermostat Application Heating and Cooling

Throttling Range 1 to 5 psi

Width 3 1/8 in
