Home / Pressure Transmitter, 0 to 500 psi Range

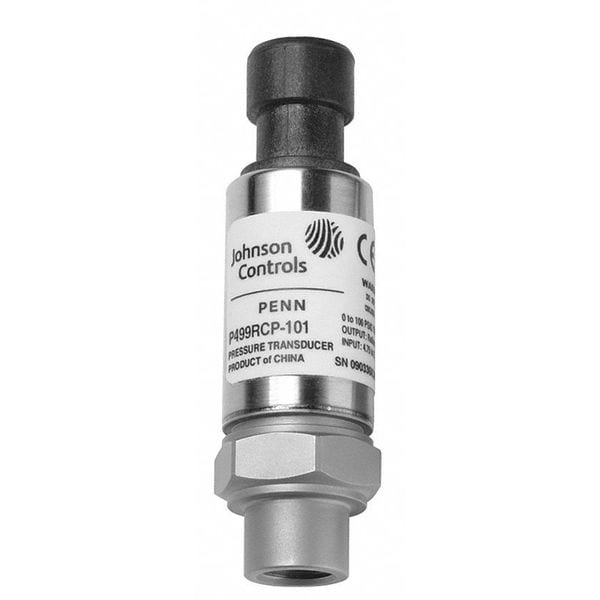

Pressure Transmitter, 0 to 500 psi Range

Pressure Transmitter, 0 to 500 psi Range

  • Johnson Controls
  • Pressure Transmitter, Minimum Pressure 0 psi, Maximum Pressure 500 psi, Electrical Connections 3-Pin Packard Connector, Output 4 to 20mA DC, Accuracy +/-1 Percent of Full Scale, Number of Wires 3, Process Connection Gender Male, Process Connection Size 1/4 in, Process Connection Type SAE 45 Degrees Flare, Power Required 9 to 30V DC, Series P499, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Housing Material Stainless Steel

    graingerSKU: 20RG26, mscSKU: , zoro_no: G003789701, mongo_id: 65bbe95a22d7a989a994f58c

Web Price
$268.74 / each
Qty

Product Details

+/-1%
+/-1.00% Full Scale
5x Range
6.5 ft
All Media Compatible with 17-4PH Stainless Steel, Including Ammonia
China
3-Pin Packard Connector
3-Pin Packard Connector
Packard Connector with 6-1/2 ft Wiring Harness
No
1% Total Error Band, Environmentally Protected Electronics, Long Operating Life, Single-Piece Machined Port
Stainless Steel
Any Corrosive or Non-Corrosive Pressure Medium That is Compatible with 17-4PH Stainless Steel, Including Water, Condensate, Carbon Dioxide, Glycol, Most Refrigerants Including Ammonia, and Many Other Compatible Fluids and Gases
Ammonia, Carbon Dioxide, Condensate, Fluids, Gas, Glycol, Refrigerants, Water
17-4PH Stainless Steel Construction
Stainless Steel
6 1/2 Ft (2 m) Wire Harness, Transducer
No
78.74
Minimum Between Transducer Body and Any Wire: 100 megaohm @ 500V DC
3 yr
1,000 psi
100 Mega Ohm @ 500V DC
185 Degrees F
500 psi
-40 Degrees F
0 psi
7 - Class 1, Division 2, Groups A, B, C, and D
3
-40 Degrees to 185 Degrees F
-40 Degrees to 185 Degrees F
-40 Degrees F to 185 Degrees F
4 to 20mA DC
4 to 20mA DC
3.19 in
0.875 in
2x Range
1
9 to 30V DC
12 to 30V DC
0 psi to 500 psi
psig/bar
1/4 in Male SAE 45 Degrees Flare
Male
1/4 in
1/4 in
SAE 45 Degrees Flare
SAE Flare Internal Thread
0 to 500 psig
psig
0 to 500
Class I Div. 2
Class I, Div. 2, Groups A, B, C, D
P499
UL Listed
-40 Degrees F to 257 Degrees F (-40 Degrees C to 125 Degrees C)
Pressure Transmitter
17-4PH Stainless Steel Construction
17-4PH Stainless Steel
None
