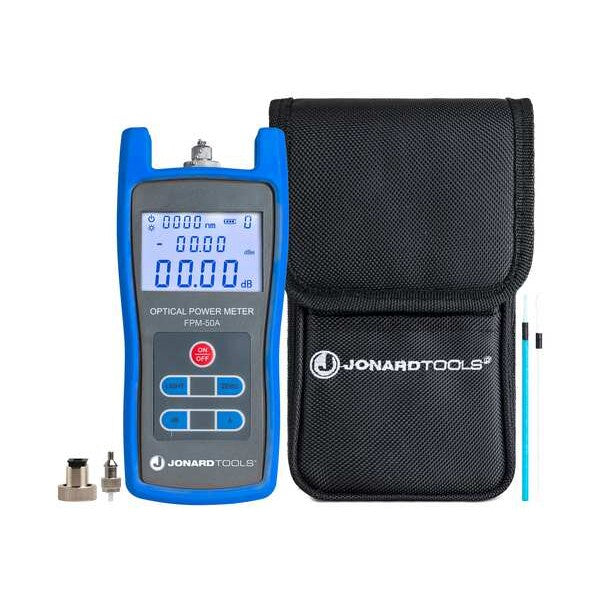

Fiber Power Meter

SKU
Brand Jonard Tools
Categories
Description Fiber Optic Power Meter, Calibration Certificate Available Separately, Connector Type FC, LC, SC, Adapters Included FC, LC, SC, CAT Safety Rating CAT I, Alert Type Light, Fault Location Pulse Duration 1 min, Fiber Mode Measured Single-Mode, IP Rating IP40, Product Type Light Source Power Meter Kit, Testing Functions Optical Power Loss, Optical Power Measuring, Battery Chemistry Alkaline, Battery Size AA
graingerSKU: 783DY6, mscSKU: , zoro_no: G702203539, mongo_id: 65bbe6ec3aaddbd5a90623a3

Web Price

$803.74 / each

Qty

Product Details

Adapter Type FC/SC/LC

Adapters Included FC, LC, SC

Alert Type Light

Application Fiber Optic Cable Testing

Battery Chemistry Alkaline

Battery Size AA

Calibration Certificate Available Separately

CAT Safety Rating CAT I

Connector Type FC, LC, SC

Connector Types FC, SC (APC/PC/UPC) & LC (PC/UPC)

Country of Origin (subject to change) China

Fault Location Pulse Duration 1 min

Features Has Four Different Modulation Outputs (CW, 270 Hz, 1 KHz, 2 KHz), The Fls-50 Fiber Optic Light Source to Provide Either 1,310 nm or 1,550 nm Wavelengths for a Stable Light Source for Single-Mode Fiber Measurements

Fiber Mode Measured Single-Mode

Height 6.63 Inch

Includes (2) Cleaning Swabs, FC Adapter, LC Adapter, Carrying Case, Protective Cover, SC Adapter, Storage Pouch

Includes Batteries Yes

IP Rating IP40

Length 11.13 Inch

Light Source Wavelengths 1310, 1550

Maximum Power Measurement 26 dBm

Maximum Wavelength Measurement 1,650 nm

Measures Power

Minimum Power Measurement -50 dBm

Minimum Wavelength Measurement 800 nm
