Home / Insulation Sheet, NBR/PVC, 36 in x 48 in, 1 in Wall, Black

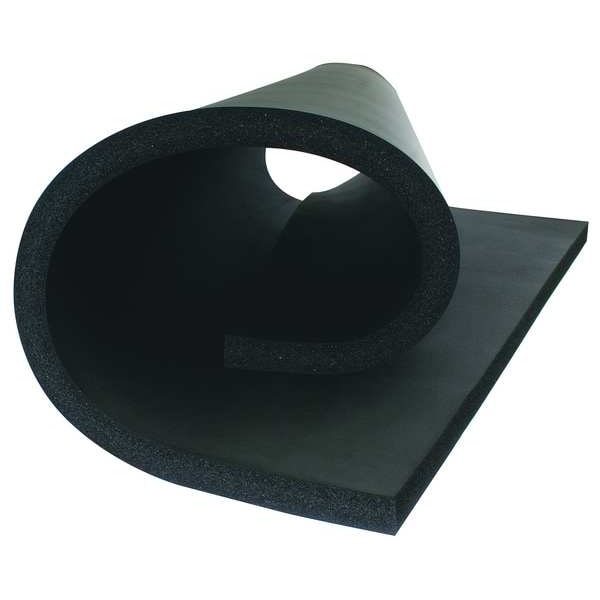

Insulation Sheet, NBR/PVC, 36 in x 48 in, 1 in Wall, Black

SKU
Brand K-Flex Usa
Categories
Description Insulation Sheet, Insulation Material Buna-N Rubber/PVC, Insulation Color Black, Overall Length 4 ft, Overall Width 36 in, Thickness 1 in, Minimum Operating Temperature -40 Degrees F, Backing Type Plain, Maximum Operating Temperature 220 Degrees F, Facing Material Unfaced, R Value 4, Form Sheet, Flame Spread Index 25, Smoke Developed Index 50, Foam Cell Type Closed, Plenum Rating Plenum Rated, Flexibility Flexible
graingerSKU: 3F416, mscSKU: , zoro_no: G0679472, mongo_id: 65bbe88b22d7a989a98fed29

Web Price

$49.61 / each

Qty

Product Details

Approx. R Value 4

Clean Room Class Not Applicable

Color Black

Country of Origin (subject to change) Multiple

Density 3 to 6 lb/cu ft

Flame Spread Index 25

Flexibility Flexible

Foam Cell Type Closed

For Location Outdoor

For Piping System Industrial Process

Green Certification or Other Recognition GREENGUARD Certified

Green Environmental Attribute Product Contributes To Reducing Energy Consumption

Green Environmental Properties Fibers, Formaldehyde, HCFCs, HFCs, No CFCs, PBDEs

Includes Skin on Two Sides

Insulation Approx. R Value 4.0

Insulation Body Material NBR/PVC

Insulation Sheet Size 36 in x 48 in

Insulation Temp. Range -297 Degrees F to 220 Degrees F

Market Industrial

Material NBR/PVC Based Elastomeric

Package Quantity 1

Pipe Insulation Item Insulation Sheet

Plenum Rating Plenum Rated

Promotion Restriction Not eligible for promotion

R Value 4

Sealing Method Contact Adhesive

Self-Adhesive Backing No

Sheet Size 36 x 48

Smoke Developed Index 50

Sound Transmission Class 13

Standards ASTM C 534 Type 2 Sheeting; ASTM D 1056-00-2C1; New York City MEA 186-86-M Vol. IV; USDA Requirements, Meets requirements of ASTM C 411 (Test Method for Hot Surface performance of High Temperature Thermal Insulation); Meets requirements of UL 181 sections 11.0 and 16.0 (Mold Growth/Air Erosion), MIL-P-15280 For S (Sheeting), UL 94-5V Flammability Classification (Recognition # E300774); ASTM E84 1-1/2 in 25/50 Tested according to UL 723 and NFPA 255; Complies with requirements of CAN/ULC S102-M88; NFPA No 101 Class A Rating; Meets requirements of NFPA 90A Sect 2.3.3 for Supplementary materials for Air Distribution Systems

Temp. Range -297 Degrees to 220 Degrees F

Thickness 1

Wall Thickness - Insulation 1 in

Water Vapor Absorption 0%

Water Vapor Permeability Less Than 0.01 perm-in Dry Cup
