Home / Finished Bore Steel Miter

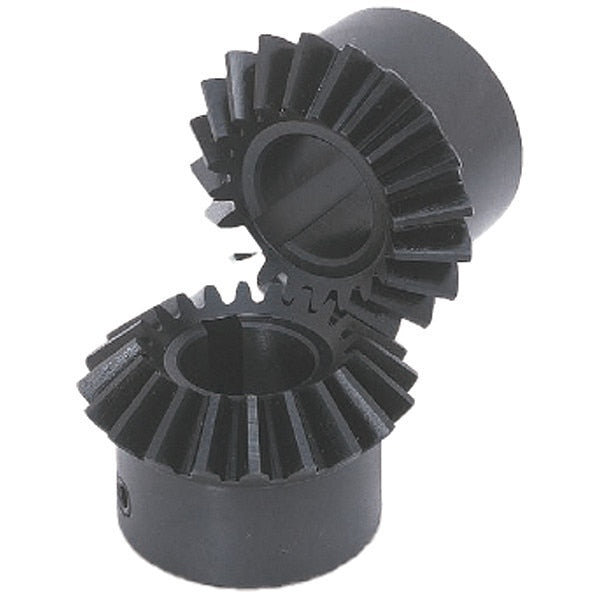

Finished Bore Steel Miter

Finished Bore Steel Miter

  • Khk Gears
  • Bore Miter Gear, Bore Diameter 20 mm, Bore Diameter Tolerance H7, Bore Type Finished, Face Width 15 mm, Finish Black Oxide, For Shaft Angle 90 Degrees , Gear Shape BK, Hub Diameter 50 mm, Hub Projection 12.5 mm, Hub Type Hub with Set Screws, Includes Set Screw, Keyway Yes, Keyway Depth 2.3 mm, Keyway Width 5 mm, Material Carbon Steel, Material Grade S45C, Maximum Teeth Hardness 60 HRC, Metric Module Pitch 2.5, Minimum Teeth Hardness 50 HRC

    graingerSKU: 792Z35, mscSKU: , zoro_no: G604845462, mongo_id: 65bbea2822d7a989a999af54

Web Price
$102.19 / each
Qty

Product Details

20 mm
H7
Finished
Finished Bore with Keyway & Set Screw
Japan
15 mm
Black Oxide
90 Degrees
Black Oxide Coated Carbon Steel
BK
50 mm
12.5 mm
Hub with Set Screws
Set Screw
2.3 mm
5 mm
S45C
60 HRC
2.5
50 HRC
Straight-Tooth Miter Gear
50 mm
1
25
66.04 mm
30.41 mm
1
62.5 mm
JIS B 1704:1978 Grade 4
20 Degrees
M6
Metric
Hardened Teeth
Straight
Induction Hardened Teeth
