Home / CFL Fixture, HazLoc, 64W, CF32DT/E/IN/830

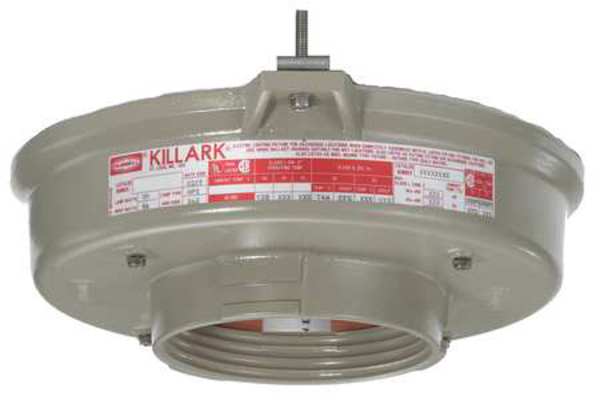

CFL Fixture, HazLoc, 64W, CF32DT/E/IN/830

SKU
Brand Killark
Categories
Description Compact Fluorescent Fixture, Lighting Technology Compact Fluorescent, Lumens 4,800 lm, Number of Ballasts 2, Number of Bulbs 2, Overall Height 14 1/16 in, Overall Length 14 1/16 in, Overall Width 6 in, Safety Rating Class I, Division 2, Group A, B, C, D, Class II, Divisions 1 and 2, Group E, F, G, Class III, Class l, Group IIC, Group llB, Group llA, Zone 2, Color Temperature 4000K, Emergency Battery Backup No, Fixture Ballast Type Electronic, 120 to 277V AC, Ambient Temp. Range -4 Degrees F

Web Price

$742.49 / each

Qty

Product Details

Ambient Temp. Range -4 Degrees F

Bulb Designation CF32DT/E/IN/830

CA Title 24 Compliant No

Color Temperature 4000K

Country of Origin (subject to change) United States

Emergency Battery Backup No

Fixture Ballast Type Electronic

Fixture Type Hazardous Location

Fixture Type - Decorative and Surface Mount Fixtures Explosion Proof Pendant

Fixture Voltage 120 to 277V AC

Fixture Wattage 64

For Bulb Type Compact Fluorescent

For Max. Bulb Wattage 64 W

For Number of Bulbs 2

Hazardous Class Class I/Division 2, Class II/Division 1, Class II/Division 2, Class III

Height 5 3/8 in

Housing Color Tan

Housing Finish Powder Epoxy Paint

Housing Material Aluminum

Ingress Protection Rating 66

Item - Decorative and Surface Mount Fixtures Traditional Surface Mount Fixture

Lamp Included Yes

Lamp Quantity 2

Lamp Type Compact Fluorescent

Lamp Watts 32

Lamp Watts - Fixtures 64 W

Length 11 1/3 in

Lens Material Luminaire

Light Technology Compact Fluorescent

Lighting Technology Compact Fluorescent

Lumens 4,800 lm

Lumens per Watt 75 lm/W

Max. Ambient Temp. 131 Degrees F

Max. Fixture Wattage 64 W

Mounting Ceiling/Pendant/Wall

Mounting Location Pendant

Mounting Style Pendant

Number of Ballasts 2

Number of Bulbs 2

Overall Height 14 1/16 in

Overall Length 14 1/16 in

Overall Width 6 in

Package Quantity 1

Safety Rating Class I, Division 2, Group A, B, C, D, Class II, Divisions 1 and 2, Group E, F, G, Class III, Class l, Group IIC, Group llB, Group llA, Zone 2

Series VQ1F

Shape Circular

Standards cCSAus Certified, Listed for Wet Locations, NEMA 3, NEMA 4, NEMA 4X

Suggested Lamp Item No. 1PHA3

Temperature Code T2D

Voltage 120 to 277V AC

Width 13 2/3 in
