Home / Compact Fluorescent Fixture, With 2PDD1

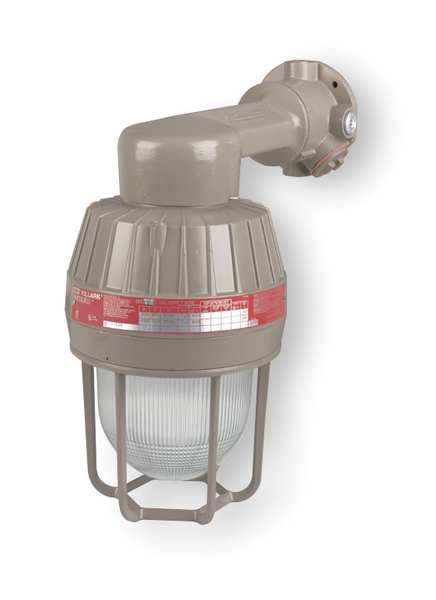

Compact Fluorescent Fixture, With 2PDD1

SKU
Brand Killark
Categories
Description Compact Fluorescent Light Fixture, Hazardous Location Fixture Type, Fluorescent Lamp Type, Lamp Quantity 2, Bulb Designation GX24-Q-3, Lamp Watts 64 W, Suggested Lamp Item No. 1PHA3, Fixture Wattage 64, Voltage 120 to 277V AC, Factory Sealed, Yes Lamp Included, Ambient Temp. Range -40 Degrees F, Housing Material Aluminum, Powder Epoxy Paint Housing Finish, Wall Mounting, Length 8-13/16 in, Height 11-15/16 in, Includes Guard, Width 8-13/16 in
graingerSKU: 7AA06, mscSKU: , zoro_no: G2913303, mongo_id: 65bbe7393aaddbd5a9081b0a

Web Price

$1,772.49 / each

Qty

Product Details

Ambient Temp. Range -40 Degrees F

Ballast Quantity 1

Bulb Designation GX24-Q-3

CA Title 24 Compliant No

Color Temperature Lamp Dependent

Country of Origin (subject to change) Multiple

Description/Special Features Factory Sealed

Dimmable No

Emergency Battery Backup No

Fixture Ballast Type High Power Factor

Fixture Type Hazardous Location

Fixture Type - Decorative and Surface Mount Fixtures Hazardous Location Pendant

Fixture Voltage 120 to 277V AC

Fixture Wattage 64

Flasher Strobe Color Not Applicable

For Bulb Base Type Medium

For Bulb Type Fluorescent

For Max. Bulb Wattage 64 W

For Number of Bulbs 1

Height 11-15/16 in

Height (In.) 11-15/16

Housing Color Tan

Housing Finish Powder Epoxy Paint

Housing Material Aluminum

Includes Guard

Ingress Protection Rating 66

Item - Decorative and Surface Mount Fixtures Traditional Surface Mount Fixture

Lamp Included Yes

Lamp Quantity 2

Lamp Type Fluorescent

Lamp Type - Fixtures GX24-Q-3

Lamp Watts 64 W

Lamp Watts - Fixtures 32.0

Length 8-13/16 in

Length (In.) 8-13/16

Lighting Technology Fluorescent

Linkable Up To Unlinkable

Lumens 4,800 lm

Max. Fixture Wattage 64 W

Min. Ambient Temp. -40 Degrees F

Mounting Wall

Mounting Location Ceiling, Pendant, Wall

Mounting Style Pendant

Nominal Height 11 15/16 in

Nominal Length 8 13/16 in

Nominal Size - Fixtures 1 ft x 1 ft

Nominal Width 8 13/16 in

Number of Ballasts 1

Number of Bulbs 2

Overall Height 12 in

Overall Length 8 7/8 in

Overall Width 8 7/8 in

Package Quantity 1

Safety Rating Class I, Divisions 1 and 2, Groups C, D, Class I, Groups IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Zones 1 and 2

Series EQF

Standards Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X, Listed For Wet Locations

Suggested Lamp Item No. 1PHA3

Temperature Code T6

UL/CSA/ETL Listed CSA Certified, UL Listed

Voltage 120 to 277V AC

Width 8-13/16 in

Width (In.) 8-13/16
