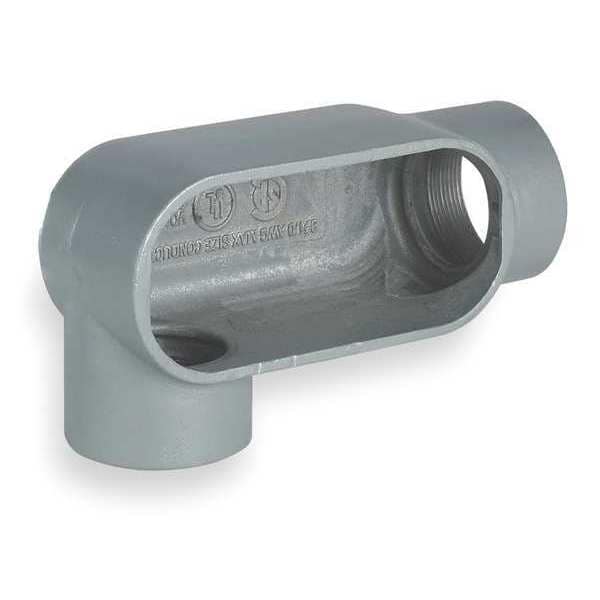

Conduit Outlet Body, Iron, LR, 1 In.

SKU
Brand Killark
Categories
Description Conduit Outlet Body, Overall Width 11 in, Overall Height 3 3/4 in, Overall Length 7 in, Weight 1.7 lb, Trade Size 1 in, Compatible Conduit Trade Size 1 in, Hub Size 1 in, Compatible Cover 370, 370C, 370CG, 370CGSA, 370CSA, 370G, 370GSA, 370SA, Iron, Duraloy 7, Compatible Conduit Type IMC, RMC, Back Type Flat, Body Capacity 11 cu in, Body Style LR, Body Type Conduit Outlet Body, Color Gray, Connection Orientation 90 Degrees , Connection Type Threaded, Finish Powder Coated, For Use With IMC, RMC
graingerSKU: , mscSKU: , zoro_no: G2428526, mongo_id: 65bbe85f22d7a989a98eeca1

Web Price

$26.56 / each

Qty

Product Details

Application To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.

Back Type Flat

Body Capacity 11 cu in

Body Style LR

Body Type Conduit Outlet Body

Color Gray

Compatible Conduit Trade Size 1 in

Compatible Conduit Type IMC, RMC

Compatible Cover 370, 370C, 370CG, 370CGSA, 370CSA, 370G, 370GSA, 370SA

Conduit Outlet Body Capacity 11.0 cu in

Conduit Outlet Body Hub Size 1 in

Conduit Outlet Body Hub Style Threaded

Conduit Outlet Body Material Iron

Conduit Outlet Body Style LR

Conduit Outlet Body Type Conduit Outlet Body

Conduit Outlet Hub Size 1

Connection Orientation 90 Degrees

Connection Type Threaded

Country of Origin (subject to change) Mexico

CSA File Number LR11852

Dimensions 7 in x 11 in x 3.75 in

Each - Width 11.000 in

Finish Powder Coated

Finish Type Powder Epoxy Paint

For Use With IMC, RMC

Form Form 7

Hazardous Location Yes

Hazardous Location Rating Class I, Division 2, Class I, Zone 2

Hazardous Rating(s) Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).

Height 3.75 in

Hub Pattern LR

Hub Size 1 in

Hub Style Threaded

Length 7 in

Material Iron

Number of Hubs 2

Overall Height 3 3/4 in

Overall Length 7 in

Overall Width 11 in

Package Quantity 1

Series Duraloy 7

Shape LR

Special Features Intermateability UL Listed and CSA Certified interchangeability with competitive products. Suitable for wet locations when used with gaskets. Innovative spring clip design for installation ease and repeat usage. Smooth integral wire bushings protects cabl

Standards CSA, UL

Style of Hub Threaded

Thread Gender Female

Thread Size 1 in

Thread Type NPT

Trade Size 1 in

Type Conduit Body

UL File Number E3397

Weight 1.7 lb

Width 11.000 in
