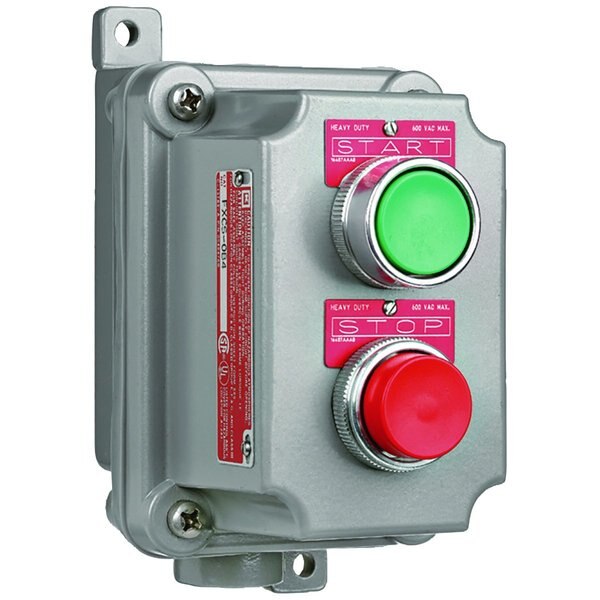

Double Push Button

SKU
Brand Killark
Categories
Description Double Push Button

Web Price

$987.49 / each

Qty

Product Details

Action Momentary

Actuator Single Pushbutton

Ambient Temp. Range UL: -25 to 40 ÃÂºC, CSA: -50 to 40 ÃÂºC, IEC: -20 to 40 ÃÂ°C

Amperage 1899-12-30

Amperage Rating 1 A

Application SEAL-X Series is used to prevent the igniting of external hazardous atmospheres by the enclosed arcing devices in such areas as: hazardous locations due to the presence of flammable gases or vapors, combustible dusts or easily ignitable fibers or flyings

Back Box Type FXB

Color Green-Red

Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC;

Country of Origin (subject to change) United States

CSA File Number LR11714, LR11712

Depth 5.06

Dimensions 6.63 in x 6 in x 4.38 in

Each - Width 6.000 in

Frequency 50/60 Hz

Frequency Rating 50/60 Hz

Hazardous Rating(s) Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2

Height 4.38 in

Hub Pattern Dead-End

Hub Size 3/4

Length 6.63 in

Nema Rating 3

Number Of Poles 2

Package Net Weight 4.4

Package Quantity 1

Seal Type Factory Sealed

Series FXCS

Size 6.63 in x 6 in x 4.38 in

Special Features Killark SEAL-X Series Factory Sealed Control Stations provide control solutions in hazardous location areas to supply; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas where Type 3, 7 & 9 protection ratings are required for indoor and outdoor use. UL Listed and CSA Certified.

Type Factory Sealed

UL File Number E53360, E12379

Width 6.000 in
