Home / High Pressure Sodium Fixture, With 2PDD2

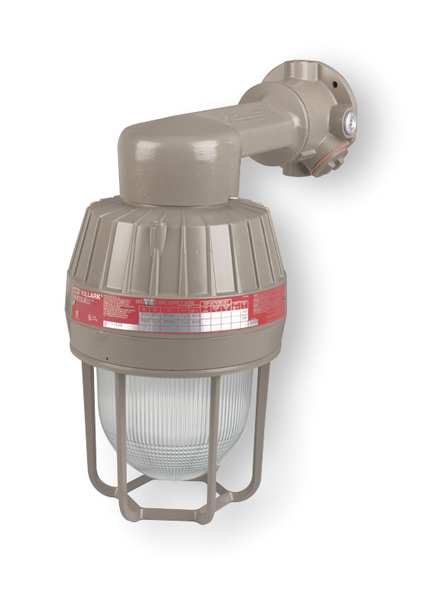

High Pressure Sodium Fixture, With 2PDD2

SKU
Brand Killark
Categories
Description High Pressure Sodium Light Fixture, Hazardous Location Fixture Type, Metal Halide Lamp Type, Lamp Quantity 1, Bulb Designation S55, Lamp Watts 150 W, Suggested Lamp Item No. 2V713, Fixture Wattage 150, Voltage 120/208/240/277V AC, Factory Sealed, No Lamp Included, Ambient Temp. Range -40 Degrees to 149 Degrees F, Housing Material Aluminum, Powder Epoxy Paint Housing Finish, Stanchion Mounting, Length 11-1/4 in, Height 18 in, Includes Guard, Width 11-1/4 in
graingerSKU: 7AA29, mscSKU: , zoro_no: G2824473, mongo_id: 65bbea4122d7a989a99a4d80

Web Price

$2,238.74 / each

Qty

Product Details

Ambient Temp. Range -40 Degrees to 149 Degrees F

Ballast Quantity 1

Bulb Designation S55

CA Title 24 Compliant No

Color Temperature Lamp Dependent

Country of Origin (subject to change) Multiple

Description/Special Features Factory Sealed

Dimmable No

Emergency Battery Backup No

Fixture Ballast Type Pulse Start

Fixture Type Hazardous Location

Fixture Type - Decorative and Surface Mount Fixtures Hazardous Location Pendant

Fixture Voltage 120/277/347/480V AC

Fixture Wattage 150

Flasher Strobe Color Not Applicable

For Bulb Base Type Mogul

For Bulb Type High Pressure Sodium

For Max. Bulb Wattage 150 W

For Number of Bulbs 1

Height 18 in

Housing Color Tan

Housing Finish Powder Epoxy Paint

Housing Material Aluminum

Includes Guard

Ingress Protection Rating 66

Item - Decorative and Surface Mount Fixtures Traditional Surface Mount Fixture

Lamp Included No

Lamp Quantity 1

Lamp Type Metal Halide

Lamp Type - Fixtures S55

Lamp Watts 150 W

Lamp Watts - Fixtures 150.0

Length 11-1/4 in

Lighting Technology HID

Linkable Up To Unlinkable

Lumens 16,000 lm

Lumens per Watt 106 lm/W

Max. Ambient Temp. 149 Degrees F

Max. Fixture Wattage 150 W

Min. Ambient Temp. -40 Degrees F

Mounting Stanchion

Mounting Location Ceiling, Floor, Pendant, Wall

Mounting Style Pendant

Nominal Height 18 in

Nominal Length 11 1/4 in

Nominal Size - Fixtures 1 ft x 1 ft

Nominal Width 11 1/4 in

Number of Ballasts 1

Overall Height 18 in

Overall Length 11 1/4 in

Overall Width 11 1/4 in

Package Quantity 1

Safety Rating Class I, Divisions 1 and 2, Groups C, D, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Class l, AEx d IIB, Class l, Groups llB, llA, Zone 1, Zone 1 and 2

Series EZ

Standards Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X

Suggested Lamp Item No. 2V713

Temperature Code T4

UL/CSA/ETL Listed CSA Certified, UL Listed

Voltage 120/208/240/277V AC

Width 11-1/4 in
