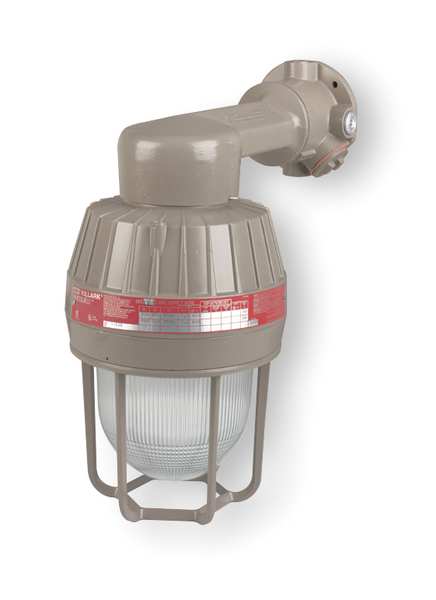

Incandescent Fixture, With 2PDD1

SKU
Brand Killark
Categories
Description Incandescent Light Fixture, Hazardous Location Fixture Type, Medium Base Lamp Type, Lamp Quantity 1, Bulb Designation A-23/PS-25, Lamp Watts 300 W, Suggested Lamp Item No. 2PLK5, Fixture Wattage 300, Voltage 250V AC, Corrosion Resistance, Factory Sealed, No Lamp Included, Ambient Temp. Range -40 Degrees F, Housing Material Aluminum, Powder Epoxy Paint Housing Finish, Wall Mounting, Length 7-7/16 in, Height 10-5/16 in, Includes Guard, Width 7-7/16 in
graingerSKU: 7AA04, mscSKU: , zoro_no: G0734273, mongo_id: 65bbe6d13aaddbd5a9056b67

Web Price

$1,109.99 / each

Qty

Product Details

Ambient Temp. Range -40 Degrees F

Ballast Quantity 1

Bulb Designation A-23/PS-25

CA Title 24 Compliant No

Color Temperature Lamp Dependent

Country of Origin (subject to change) Multiple

Description/Special Features Corrosion Resistance, Factory Sealed

Dimmable No

Emergency Battery Backup No

Finish Powder Epoxy Paint

Fixture Ballast Type High Power Factor

Fixture Type Hazardous Location

Fixture Type - Decorative and Surface Mount Fixtures Explosion Proof Pendant

Fixture Voltage 120 to 277V AC

Fixture Wattage 300

Flasher Strobe Color Not Applicable

For Bulb Base Type Medium

For Bulb Shape A23/PS25

For Bulb Type Incandescent

For Max. Bulb Wattage 300 W

For Number of Bulbs 1

Height 10-5/16 in

Height (In.) 10-5/16

Housing Color Tan

Housing Finish Powder Epoxy Paint

Housing Material Aluminum

Includes Guard

Ingress Protection Rating 66

Item - Decorative and Surface Mount Fixtures Traditional Surface Mount Fixture

Lamp Included No

Lamp Quantity 1

Lamp Type Medium Base

Lamp Type - Fixtures A23

Lamp Watts 300 W

Lamp Watts - Fixtures 300.0

Length 7-7/16 in

Length (In.) 7-7/16

Light Technology Incandescent

Lighting Technology Incandescent

Linkable Up To Unlinkable

Lumens 6,360 lm

Max. Fixture Wattage 300 W

Min. Ambient Temp. -40 Degrees F

Mounting Wall

Mounting Location Wall

Mounting Style Pendant

Nominal Height 10 5/16 in

Nominal Length 7 7/16 in

Nominal Size - Fixtures 1 ft x 1 ft

Nominal Width 7 7/16 in

Number of Ballasts 1

Overall Height 10 3/8 in

Overall Length 7 1/2 in

Overall Width 7 1/2 in

Package Quantity 1

Safety Rating Class I, Divisions 1 and 2, Groups C, D, Class I, Groups IIB, IIA, Class II, Divisions 1 and 2, Groups E, F, G, Class III, Divisions 1 and 2, Zones 1 and 2

Series EM

Standards Factory Sealed, Marine Rated (US Only), NEMA 3, NEMA 4, NEMA 4X, Suitable for Wet Locations

Suggested Lamp Item No. 2PLK5

Temperature Code T3C

UL/CSA/ETL Listed CSA Certified, UL Listed

Voltage 250V AC

Width 7-7/16 in

Width (In.) 7-7/16
