Home / LED Fixture, V Series, 13W

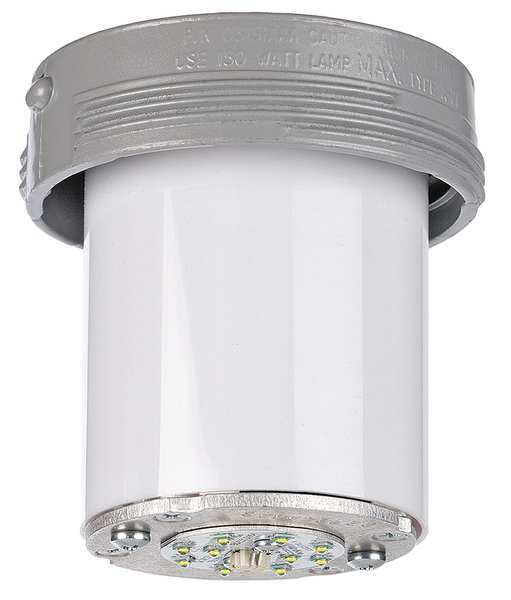

LED Fixture, V Series, 13W

SKU
Brand Killark
Categories
Description LED Fixture, Lighting Technology LED, Lumens 1,300 lm, Overall Height 10 7/64 in, Overall Length 8 1/64 in, Overall Width 4 3/8 in, Safety Rating Class I, Division 2, Group A, B, C, D, Class I, Group IIC, IIB, IIA, Class II, Division 2, Group F, Group G, Class III, Division 1 and 2, Zone 2, Color Temperature 5000K, Emergency Battery Backup No, 120 to 277V AC, Dimmable No, Ambient Temp. Range -40 Degrees to 131 Degrees F, CA Title 24 Compliant No, Color Rendering Index 70.0, For Bulb Type LED
graingerSKU: 22P052, mscSKU: , zoro_no: G4545721, mongo_id: 65bbe7fc9a749db822769aa5

Web Price

$509.99 / each

Qty

Product Details

Ambient Temp. Range -40 Degrees to 131 Degrees F

Application Killark Ã¢ÂÂÃÂ¬ÃÂÃÂVSLÃ¢ÂÂÃÂ¬Ã¢ÂÂÃÂ¢ Series LED fixtures are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4 areas where wind, water, snow or high ambients can be expected. VSLÃ¢ÂÂÃÂ¬Ã¢ÂÂÃÂ¢s are sized to replace Ã¢ÂÂÃÂ¬ÃÂÃ¢ÂÂUtilityÃ¢ÂÂÃÂ¬ type fixtures (incandescent or CFLÃ¢ÂÂÃÂ¬Ã¢ÂÂÃÂ¢s) in hallways, closets, elevator pits, docks, stairwells, access tunnels, and mechanical rooms. These fixtures can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, and garage areas

CA Title 24 Compliant No

Color Rendering Index 70.0

Color Temperature 5000K

Country of Origin (subject to change) United States

Cycle Time 10,000 hrs

Description/Special Features 13W V SERIES LED ASY 120-277V AC 50/60HZ

Dimensions 8.02 in x 4.38 in x 10.11 in

Dimmable No

Emergency Battery Backup No

Finish Powder Epoxy Paint

Fixture Housing Color Gray

Fixture Housing Material Aluminum

Fixture Rated Life 60,500 hr.

Fixture Temp. Range -40 Degrees to 55 Degrees C

Fixture Type V Series

Fixture Type - Decorative and Surface Mount Fixtures Hazardous Location Pendant

Fixture Voltage 120 to 277V AC

Fixture Warranty 5 yr.

Fixture Wattage 13

For Bulb Type LED

For Max. Bulb Wattage 13 W

Frequency 50/60 Hz

Hazardous Class Class I/Division 2, Class II/Division 2, Class III/Division 1, Class III/Division 2

Height 3 3/4 in

Housing Color Gray

Housing Finish Epoxy Powder Coated

Housing Material Aluminum

Includes Fixture Body

Ingress Protection Rating 66

IP Rating IP66

Item - Decorative and Surface Mount Fixtures LED Surface Mount Fixture

Lamp Included Yes

Lamp Type LED

Lamp Watts 13

Lamp Watts - Fixtures 13 W

LED Replacement For 60W INC

Length 4 3/4 in

Lens Material Luminaire

Light Color Cool White

Light Source LED

Light Technology LED

Lighting Technology LED

Linkable Up To Unlinkable

Lumens 1300

Lumens Per Watt 100 lm/W

Material Aluminum, Copper Free (less than 4/10 of 1%)

Max. Ambient Temp. 131 Degrees F

Max. Fixture Wattage 13 W

Min. Ambient Temp. -40 Degrees F

Mounting Ceiling/Pendant/Wall

Mounting Bracket Item Number 22P055, 22P056, 22P057, 22P058, 22P059, 22P060, 22P061

Mounting Location Ceiling

Mounting Style Ceiling, Pendant, Wall

Mounting Type Luminaire Only

Nominal Height 3 3/4 in

Nominal Length 4 3/4 in

Nominal Width 4 in

Number of Light Bars 0

Overall Height 10 7/64 in

Overall Length 8 1/64 in

Overall Width 4 3/8 in

Package Net Weight 5

Package Quantity 1

Safety Rating Class I, Division 2, Group A, B, C, D, Class I, Group IIC, IIB, IIA, Class II, Division 2, Group F, Group G, Class III, Division 1 and 2, Zone 2

Series VSL

Shape Circular

Standards CSA C22.2 No. 137-M1981 Electric Luminaries for Use In Hazardous Locations, UL 1598 Listed for Luminaires, UL 844 Listed for Lighting Fixtures for Hazardous Locations, UL 8750 Listed for LED Lighting

Temperature Code T5

Type Aluminum LED Fixture

Voltage 120 to 277V AC

Voltage Rating 120-277 VAC

Wattage 13 W

Width 4 in
