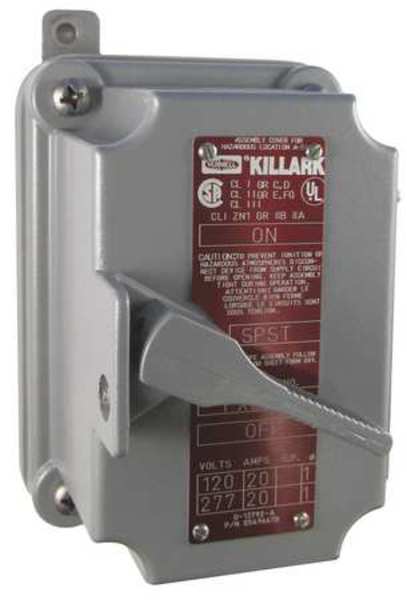

Manual Motor Switch, HazLoc, 600V, 2 Pole
Web Price
$706.24
/ each
Product Details
20 A
Provides manual starting and stopping of small AC or DC motors. Motor running protection when overload heaters are used. FXSX Series (without overload protection) is ideally suited for across-the-line applications where a positive disconnect means is requ
Aluminum
Mexico
LR11714
20 A
5.3438 in
(2) 1/2 in Hubs on Opposing Ends
3.688 in x 5.344 in x 6.813 in
7, 9
60 Hz
60 Hz
Class I, Div 1 and 2, Group C, D, Class II, Div 1 and 2, Group E, F, G, Class III, Div 1 and 2
Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
6.8125 in
3
2 hp
2 hp
2 hp
2 hp
3 hp
3 hp
2 hp
2 hp
7 1/2 hp
7 1/2 hp
10 hp
0.5 in
1/2 in
Dead-end
Dead End
Yes
Not Applicable
3.688 in
Aluminum, Copper Free (less than 4/10 of 1%)
600V AC
600V AC
6.19 in
2.25 in
Surface
3
3
None
1
2
1
Handle
3.69 in
6.81 in
5.34 in
1
Single
FXSX
3.688 in x 5.344 in x 6.813 in
FXSX Series requires no external seals (factory sealed) and are NEMA 3 (raintight) rated. Enclosures are cast copper-free aluminum alloy. Operating shaft is stainless steel. Ground flange joint between bolted cover and box provide required flame path. Pro
CSA LR11714, UL Listed E53360/E12379
NEMA
Manual
Wire Leads
Aluminum Manual Motor Starting Switch Without Overload Protection
E53360 / E12379
600 V
3.6875 in
