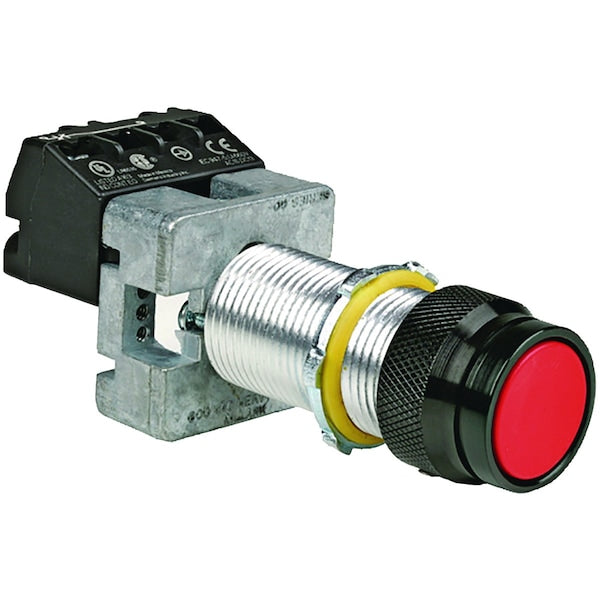

Pushbutton

SKU
Brand Killark
Categories
Description Pushbutton
graingerSKU: , mscSKU: , zoro_no: G3159795, mongo_id: 65bbe8bc22d7a989a991264c

Web Price

$306.24 / each

Qty

Product Details

Action Momentary

Actuator Single Pushbutton

Ambient Temp. Range UL: -25 to 40 ÃÂºC, CSA: -50 to 40 ÃÂºC, IEC: -20 to 40 ÃÂ°C

Amperage 1899-12-30

Amperage Rating 10 A

Application G Series custom control panel operators are designed for use in hazardous locations when installed in suitable enclosures such as B7E, EXB, XJB, DB, SWB, and GCS Series boxes and B7, Y7 starter enclosures.

Contact Rating 60A INRUSH @ 120 VAC; 30A INRUSH @ 240 VAC; 15A INRUSH @ 480 VAC; 12A INRUSH @ 600 VAC; 0.55A INRUSH @ 125 VDC; 0.275A INRUSH @ 250 VDC; 6A BREAKING @ 120 VAC; 3A BREAKING @ 240 VAC; 1.5A BREAKING @ 480 VAC; 1.2A BREAKING @ 600 VAC; 0.55A BREAKING @ 125 VDC; 0.275A BREAKING @ 250 VDC; 10A CARRYING @ 120 VAC; 10A CARRYING @ 240 VAC; 10A CARRYING @ 480 VAC; 10A CARRYING @ 600 VAC; 2.5A CARRYING @ 125 VDC; 2.5A CARRYING @ 250 VDC.

Country of Origin (subject to change) United States

CSA File Number LR11714

Dimensions 2.25 in x 6.625 in x 1.75 in

Frequency 50/60 Hz

Frequency Rating 50/60 Hz

Hazardous Rating(s) Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2

Height 1.75 in

Length 2.25 in

Nema Rating 3, 4, 4X

Number Of Poles 1

Package Net Weight 0.58

Package Quantity 1

Series GO

Size 2.25 in x 6.625 in x 1.75 in

Special features Killark GO SERIES Operators are a component use in conjunction with a Hazardous Location enclosure to provide control solutions in for; START/STOP Motor Functions, LED Pilot Light Indications and more. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor and outdoor use. UL Listed and CSA Certified

Type Push Buttons

UL File Number E12379

Width 6.625 in
