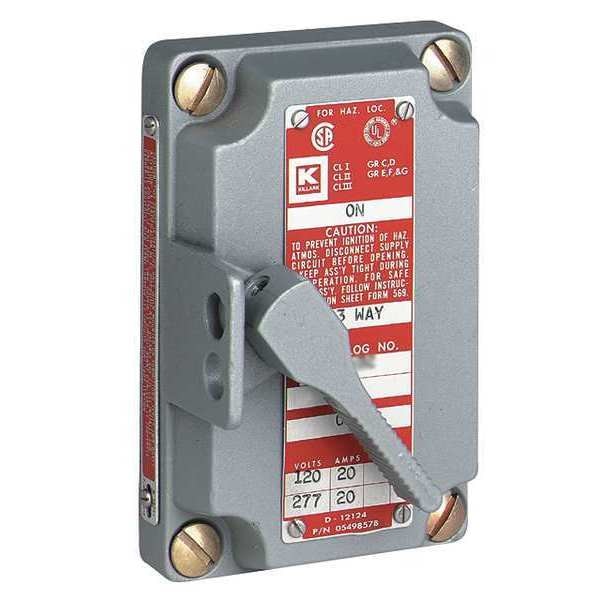

Switch Assembly Front Cover, XS Series, 3 @ 240V, 5 @ 480V, 3 Poles

SKU
Brand Killark
Categories
Description Switch Assembly Front Cover, Switch Type 3-Pole, Amps 15 A, Voltage 240/480V AC, Type of Operator Tumbler Switch, Material Cast Aluminum, For Use With EDS Series Tumbler Switches, HP 3 @ 240V, 5 @ 480V, Safety Rating Class I, Divison 1 & 2, Groups C, D; Class I, Zones 1 & 2, Groups IIB, IIA; Class II, Division 1 & 2, Groups E, F, G; Class III, Number of Gangs 1

Web Price

$428.74 / each

Qty

Product Details

Accessory Type Switch Assembly Front Cover

Action 3P

Actuator Lever

Amperage Rating 15 A

Amps 15 A

Application Used where making, breaking, or changing connections in an electric circuit is required.

Back Box Type SWB

Color Gray

Country of Origin (subject to change) United States

CSA File Number LR11712

Depth 38078

Dimensions 6.25 in x 6 in x 4.875 in

For Use With EDS Series Tumbler Switches

Frequency Rating 50/60 Hz

Hazardous Rating(s) Class I, Divisions 1 & 2, Groups C, D;Class I, Zones 1 & 2, Groups IIB, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2

Height 4.875 in

Horsepower - Maximum 5

HP_ 3 @ 240V, 5 @ 480V

Length 6.25 in

Material Cast aluminum

Number of Gangs 1

Number Of Poles 3, 3

Package Quantity 1

Safety Rating Class I, Divison 1 & 2, Groups C, D; Class I, Zones 1 & 2, Groups IIB, IIA; Class II, Division 1 & 2, Groups E, F, G; Class III

Series XS

Special Features Killark XCS SERIES TUMBLER SWITCH Control Stations provide control means in hazardous location areas turning ON and OFF Motors, Fans, Lights etc. Utilized in Class 1 Division 1 & 2, Class 1 Zone 1 & 2 areas for indoor use are a Non-Factory Sealed unit requiring the need for a conduit seal fitting. UL Listed and CSA Certified.

Switch Type 3-Pole

Type Aluminum Tumbler Switch Cover

Type of Operator Tumbler Switch

UL File Number E53360

Voltage 240/480V AC

Width 6.000 in
