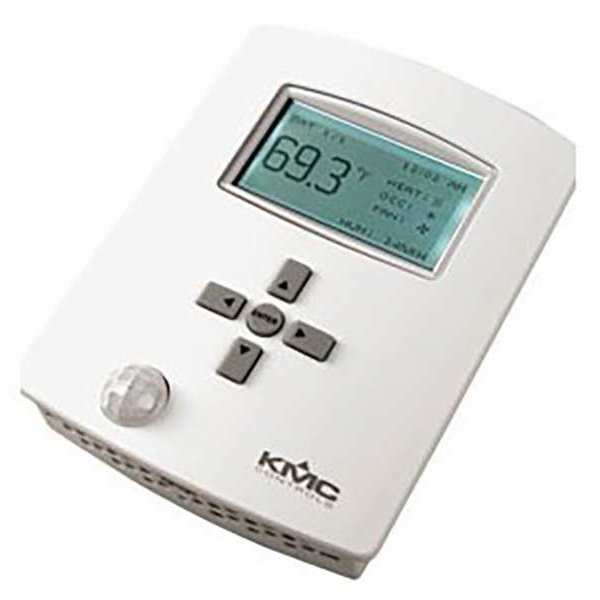

Controller, 3 Relay, 6 Outputs, Occ Sensor

SKU
Brand Kmc Controls
Categories
Description BACnet Controller, 3 Relay And 6 Universal Outputs With Occupancy Sensor, Voltage 24VAC, Inputs 3, Outputs 6, Display 64 x 128 Pixel Dot Matrix LCD, Dimensions 5-1/2 x 4-3/16 x 1-1/8, Includes Removable Backplate, For Use With AHU, RTU, Heat Pump, Fancoil Unit
graingerSKU: 6HXT0, mscSKU: , zoro_no: G3531726, mongo_id: 65bbe7fc9a749db82276a46b

Web Price

$901.24 / each

Qty

Product Details

Agency Compliance UL

Amperage 1 A

Application Heat or Cool

Backlit Screen Yes

Backlit Type Motion Activated

Compatible System Type Air Handling Units, Fan Coil Units

Connection Wire Clamp 14-22 AWG

Contact Rating 24V AC

Control Output Floating Fan Coil and Zoning, Two RTU/Heat Pump with Optional Economizer

Country of Origin (subject to change) United States

Dehumidification Control No

Dimensions 5-1/2 x 4-3/16 x 1-1/8

Display 64 x 128 Pixel Dot Matrix LCD

Display Type Digital

Dual Transformer Compatible Yes

Electrical Connection Type Hardwired

Enclosure Color White

Features Advanced Application Library

For Use With AHU, RTU, Heat Pump, Fancoil Unit

Housing Color White

Housing Material Plastic

Housing Type Flame Retardent Housing

Humidification Control No

Humidification/Dehumidification Control No, No

Includes Backplate

Inputs 3

Lead Wire Gauge 14 ga, 22 ga

Maximum Operating Humidity 95 %

Maximum Operating Temperature 125 Degrees F

Minimum Operating Humidity 0 %

Minimum Operating Temperature 32 Degrees F

Mounting Direction Horizontal

Network Protocol Compatibility BACnet MS/TP

Number of Cooling Stages - Conventional System 1

Number of Cooling Stages - Heat Pump System 1

Number of Heating Stages - Conventional System 1

Number of Heating Stages - Heat Pump System 1

Number of Pipes 2, 4

Number of Poles 1

Number of Relay Inputs 0

Number of Relay Inputs/Outputs 0/3

Number of Relay Outputs 3

Number of Switches 1

Occupancy Sensor Includes Onboard Occupancy Sensor

Operating Temperature Range 32 Degrees F to 125 Degrees F

Outputs 6

Overall Depth 1 1/8 in

Overall Height 5 1/2 in

Overall Width 4 3/16 in

Package Quantity 1

Remote Control Functions Temperature Control

Screen Height 1 1/8 in

Sensor Length 30 ft

Sensor Location Remote

Sensor Type Thermistor, Type II

Standards ANSI/ASHRAE BACnet Standard 135-2008, BACnet Testing Laboratory listed, FCC Class A, Part 15, Subpart B and complies with Canadian ICES-003 Class B, SASO PCP Registration KSA R-103260, UL 916 Energy Management Equipment

Switch Type SPST

Temperature Scale Fahrenheit/Celsius

Temperature Sensitivity +/- 0.9 Degrees F

Terminal Designations -A;+B;AO6;AO7;AO8;BO5;COM;DAT;FAN-H;FAN-L;FAN-M;GND;RBO4;RS;WST

Thermostat Type Low Voltage

Type 3 Relay And 6 Universal Outputs With Occupancy Sensor

Voltage 24V AC

Wireless Hardwired
