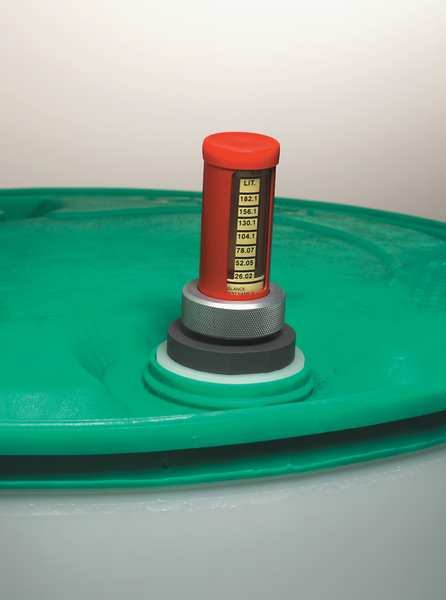

Barrel Level Gauge, 30 Gallon, 3/4" NPT

SKU
Brand Krueger
Categories
Description Level Gauge, Extension Length 0 in, Float Material HDPE, For Container Capacity 30 gal, For Container Depth 27 1/2 in, For Container Type Standing Barrels, For Liquid Type Diesel, Gasoline, Hydraulic Oil, Graduation Marks Empty; Full; 1/8 Increments, Includes Not Applicable, Increment of Variation 1/4, 1/8, Gallons, Liters, Pipe Size 3/4 in, Assembly Nut Material HDPE, Bushing Material Aluminum
graingerSKU: 9KXX7, mscSKU: , zoro_no: G4130926, mongo_id: 65bbe7a79a749db82274e27c

Web Price

$96.24 / each

Product Details

Assembly Nut Material HDPE Plastic

Bushing Material Aluminum

Calibration Unit Increments Full, 7/8, 3/4, 5/8, 1/2, 3/8, 1/4, 1/8 Empty plus Gallons and Liters

Connection Size 3/4 in NPT

Container Compatibility For 30 Gallon Drums

Country of Origin (subject to change) United States

Drum Capacity 30 gal

Features Minimal Upkeep, Quick Installation and Easy/Inexpensive Repair, Simple Mechanical Design Promotes Durability

Float Material HDPE Plastic

Float Rod Material Galvanized Steel

For Container Capacity 30 gal

For Container Depth 27 1/2 in

For Container Style For Drums

For Container Type Standing Barrels

For Liquid Type Diesel, Gasoline, Hydraulic Oil

Gasket Material Duro Nitrile

Graduation Marks Empty; Full; 1/8 Increments

Housing Material Cellulose Acetate

Increment of Variation 1/4, 1/8, Gallons, Liters

Manufacturer Warranty Length 1 yr

Manufacturers Warranty Length 1 yr

Material Aluminum (Bushing), Cellulose Acetate-Plastic, Floats), Galvanized Steel and Aluminum (Internal Rods), HDPE (Indicator, Inner and Outer Plastic (Calibration), Lock Nut, Nitrile (Gasket)

Package Quantity 1

Pipe Size 3/4 in

Rivet Material Brass

Rod Material Galvanized Steel

Rod/Float Material Galvanized Steel / HDPE

Seal Material Nitrile Rubber

Tank Depth 27 1/2 in

Thread Gender Male

Thread Type NPT

Type Drum

Units of Measurement Inches

Window Material Cellulose Acetate
