Home / 5" ID x 20 ft PVC Bulk Food Hose 30 PSI Clear

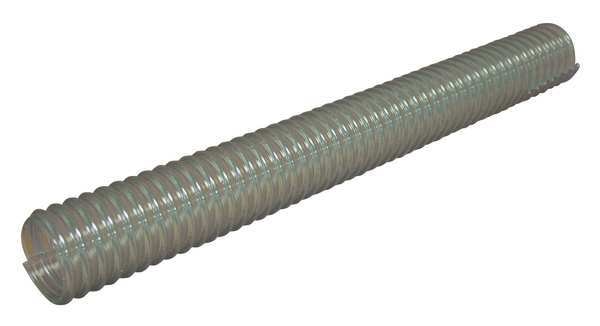

5" ID x 20 ft PVC Bulk Food Hose 30 PSI Clear

SKU
Brand Kuriyama
Categories
Description Food Hose, Hose Inside Dia. 5 in, Hose Length 20 ft, Hose Tube Material PVC, Hose Cover Material PVC, Hose Reinforcement Type Helix, Hose Reinforcement Material PVC, Hose Color Clear, Vacuum Rating 24 in Hg, Max. Working Pressure @ 70 F 30 psi, Safety Factor 4:1, Temp. Range -4 Degrees to 150 Degrees F, Standards 3-A, FDA, USDA, Bend Radius 16 in, Hose Configuration Bulk Hose
graingerSKU: 45CW48, mscSKU: , zoro_no: G2155557, mongo_id: 65bbe7453aaddbd5a9084c8b

Web Price

$1,316.24 / each

Qty

Product Details

Agency Compliance FDA, USDA, 3-A

Bend Radius 16 in

Color Clear

Compatible Chemicals Acetic Acid (Glacial), Acetic Acid 20%, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid 10%, Chromic Acid 5%, Citric Acid 50%, Dry Food, Fertilizers, Formic Acid, Fresh Water, Fungicides, Glycerin, Herbicides, Hydrochloric/Muriatic Acid (20%), Hydrofluoric Acid (20%), Hydrogen Peroxide, Nitric Acid (10% Solution), Nitric Acid (20% Solution), Pesticides, Phosphoric Acid (40% Solution), Salt Water, Sodium Bicarbonate (10%), Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide/Caustic Soda (20%), Sodium Hydroxide/Caustic Soda (50%), Sodium Hydroxide/Caustic Soda (80%), Sulfuric Acid (10% - 75%), Sulfuric Acid (to 10%), Wet Food

Country of Origin (subject to change) Canada

Cover Corrugated

Cover Material PVC

Food Hose Inside Dia. 5

Food Hose Length 20 ft.

Food Hose Max. Pressure 30 psi

Food Hose Max. Vacuum 24 Hg

For Media Type Acetic Acid, Air, Beverage, Calcium Chloride, Carbon Dioxide, Chromic Acid, Citric Acid, Dry Food, Fertilizers, Formic Acid, Fungicides, Glycerin, Herbicides, Hydrochloric Acid, Hydrofluoric Acid, Hydrogen Peroxide, Nitric Acid, Pesticides, Phosphoric Acid (40% Solution), Sodium Bicarbonate, Sodium Bisulfate, Sodium Bisulfite, Sodium Hydroxide, Sulfuric Acid, Water, Wet Food

Hose Color Clear

Hose Configuration Bulk Hose

Hose Cover Material PVC

Hose Inside Dia. 5 in

Hose Length 20 ft

Hose Reinforcement Material PVC

Hose Tube Material PVC

Inside Dia. 5

Inside Dia. - Food Hose 5

Length 20 ft.

Length - Food Hose 20 ft.

Max. Pressure 30 psi

Max. Pressure - Food Hose 30 psi

Max. Vacuum 24 Hg

Max. Vacuum - Food Hose 24 Hg

Max. Working Pressure @ 70 F 30 psi

Not Recommended Chemicals Acetic Acid 80%, Acetone, Ammonia (Liquids), Anhydrous Ammonia, Automatic Transmission Fluid, Brake Fluid, Chromic Acid 30%, Chromic Acid 50%, Diesel Fuel, Ethyl Acetate, Ethylene Glycol, Formaldehyde, Formaldehyde 40%, Fuel Oil, Gasoline, Heptane, Hexane, Hydraulic Fluid (Petroleum), Hydraulic Fluid (Synthetic), Kerosene, Methyl Chloride, Methyl Ethyl Ketone (MEK), Motor Oil, Naphtha, Turpentine, Vegetable Oil, Xylene

Outside Dia. 5-3/4

Package Quantity 1

Reinforcement PVC Helix

Safety Factor 4:1

Standards 3-A, FDA, USDA

Temp. Range -4 Degrees to 150 Degrees F

Tube Material PVC

Vacuum Rating 24 in Hg

Wet or Dry Application Wet and Dry
