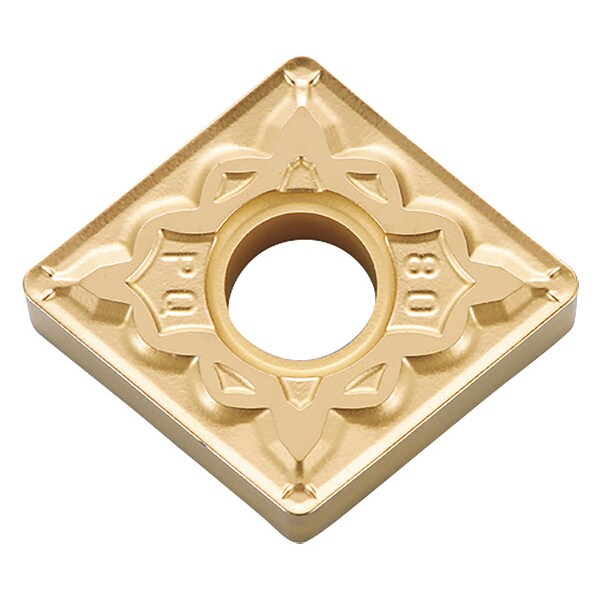

Diamond Turning Insert, Diamond, 1/2", 80 Degrees, 1/32"

SKU
Brand Kyocera
Categories
Description Diamond Turning Insert, Chip-Breaker Code PQ, Inscribed Circle 1/2 in, TiCN+Al2O3+TiN, ANSI Code CNMG432PQ, Chip-Breaker Style Medium Finishing, Clearance Angle 0 Degrees , Coating Process CVD
graingerSKU: 185HU5, mscSKU: , zoro_no: G7430649, mongo_id: 65bbe6d63aaddbd5a9058e1b

Web Price

$11.81 / each

Qty

Minimum order: 10

Product Details

ANSI Code CNMG432PQ

Chip-Breaker Yes

Chip-Breaker Code PQ

Chip-Breaker Style Medium Finishing

Clearance Angle 0 Degrees

Coating Process CVD

Corner Radius 2

Country of Origin (subject to change) Japan

Cutting Application Boring, External Turning, Facing, General to Interrupted Cutting, Internal Facing

Cutting Direction Neutral

Features Thickened Alumina with Good Thermal Resistance (Twice as Thick as Conventional Coating) and Specialized Post-Coating Process Prevents Adhesion

Finish - Machining TiCN+Al2O3+TiN

General Shape Diamond

Hole Type Straight Hole

Included Angle 80 Degrees

Inscribed Circle 4

Insert Code 432

Insert Holding Type Screw

Insert Shape Diamond

ISO Number CNMG120408PQ

Manufacturer Grade CA025P

Material - Machining Carbide

Material Grade - Machining Micro Columnar Coating Structure
