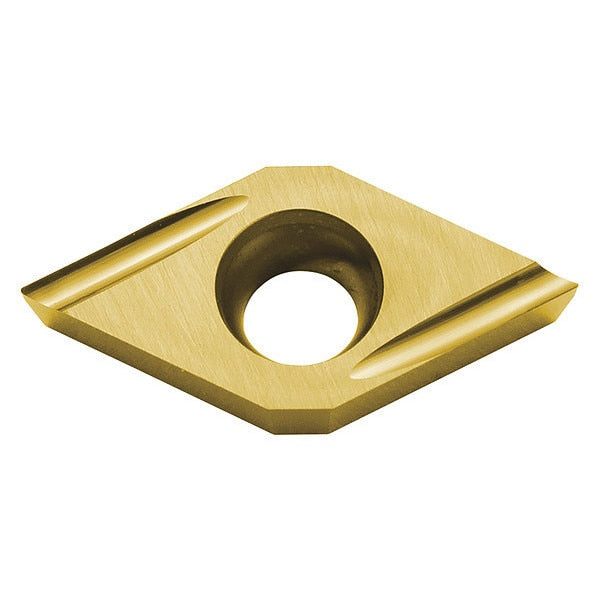

Diamond Turning Insert, Diamond, 1/4", 55 Degrees, 1/64"

SKU
Brand Kyocera
Categories
Description Diamond Turning Insert, Chip-Breaker Code U, Inscribed Circle 1/4 in, Megacoat Nano, ANSI Code DCGT2151ELU, Clearance Angle 7 Degrees , Coating Process PVD
graingerSKU: 185AC4, mscSKU: , zoro_no: G7418049, mongo_id: 65bbedfe526e052139ae3282

Web Price

$20.61 / each

Qty

Minimum order: 10

Product Details

ANSI Code DCGT2151ELU

Chip-Breaker Yes

Chip-Breaker Code U

Clearance Angle 7 Degrees

Coating Process PVD

Corner Radius 1

Country of Origin (subject to change) China

Cutting Application Back Boring, Copying, External Turning, Sub-Spindle Turning

Cutting Direction Left Hand

Cutting Edge Honed

Features Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish

Finish - Machining Megacoat Nano

General Shape Diamond

Hole Type 40 Degrees to 60 Degrees Countersink Through Hole

Included Angle 55 Degrees

Inscribed Circle 2

Insert Code 21.51

Insert Holding Type Screw

Insert Shape Diamond

ISO Number DCGT070204EL-U

Manufacturer Grade PV720

Material - Machining Cermet

Material Grade - Machining TiCN Component
