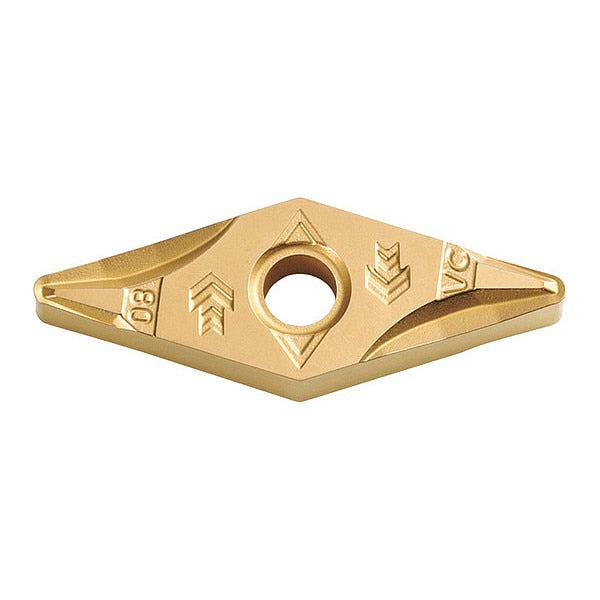

Diamond Turning Insert, Diamond, 3/8", 35 Degrees, 1/32"

SKU
Brand Kyocera
Categories
Description Diamond Turning Insert, Chip-Breaker Code VC, Inscribed Circle 3/8 in, TiCN+Al2O3+TiN, ANSI Code VNMG332LVC, Chip-Breaker Style Medium Finishing, Clearance Angle 0 Degrees , Coating Process CVD
graingerSKU: 185JZ2, mscSKU: , zoro_no: G7433196, mongo_id: 65bbe7da9a749db82275d841

Web Price

$17.24 / each

Qty

Minimum order: 10

Product Details

ANSI Code VNMG332LVC

Chip-Breaker Yes

Chip-Breaker Code VC

Chip-Breaker Style Medium Finishing

Clearance Angle 0 Degrees

Coating Process CVD

Corner Radius 2

Country of Origin (subject to change) Japan

Cutting Application Copying, External Turning, Facing, General to Interrupted Cutting, Undercutting

Cutting Direction Left Hand

Features Thickened Alumina with Good Thermal Resistance (Twice as Thick as Conventional Coating) and Specialized Post-Coating Process Prevents Adhesion

Finish - Machining TiCN+Al2O3+TiN

General Shape Diamond

Hole Type Straight Hole

Included Angle 35 Degrees

Inscribed Circle 3

Insert Code 332

Insert Holding Type Screw

Insert Shape Diamond

ISO Number VNMG160408L-VC

Manufacturer Grade CA025P

Material - Machining Carbide

Material Grade - Machining Micro Columnar Coating Structure
