Home / Diamond Turning Insert, Diamond, 5/8", 80 Degrees, 3/64"

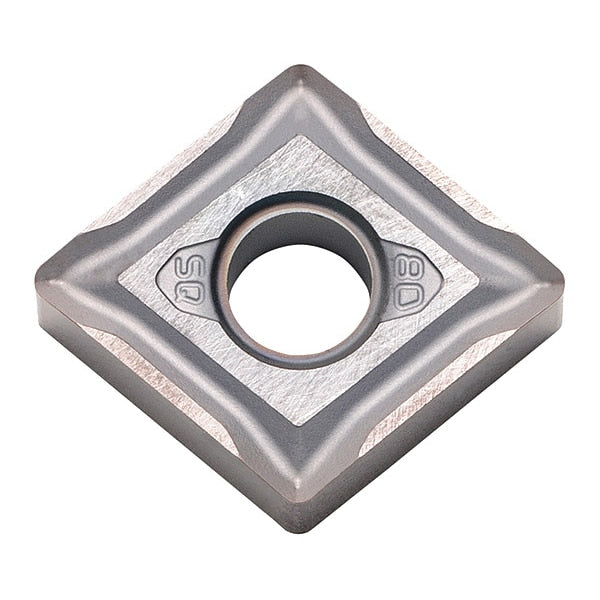

Diamond Turning Insert, Diamond, 5/8", 80 Degrees, 3/64"

SKU
Brand Kyocera
Categories
Description Diamond Turning Insert, Chip-Breaker Code SQ, Inscribed Circle 5/8 in, Megacoat Hard, ANSI Code CNMG543SQ, Chip-Breaker Style Medium Finishing, Clearance Angle 0 Degrees , Coating Process PVD
graingerSKU: 185HF3, mscSKU: , zoro_no: G7429398, mongo_id: 65bbe6d63aaddbd5a9058ea2

Web Price

$20.49 / each

Qty

Minimum order: 10

Product Details

ANSI Code CNMG543SQ

Chip-Breaker Yes

Chip-Breaker Code SQ

Chip-Breaker Style Medium Finishing

Clearance Angle 0 Degrees

Coating Process PVD

Corner Radius 3

Country of Origin (subject to change) Japan

Cutting Application Boring, Continuous to Interrupted Cutting, External Turning, Facing, Internal Facing

Cutting Direction Neutral

Features Improved Thermal Conductivity by Optimum Distribution of WC Coarse Grains in the Substrate, Resists Heat Concentration at the Cutting Edge to Promote Stable Machining

Finish - Machining Megacoat Hard

General Shape Diamond

Hole Type Straight Hole

Included Angle 80 Degrees

Inscribed Circle 5

Insert Code 543

Insert Holding Type Screw

Insert Shape Diamond

ISO Number CNMG160612SQ

Manufacturer Grade PR005S

Material - Machining Carbide

Measurement System Fractional Inch
