Home / Diamond Turning Insert, Triangle, 1/4", 1/64"

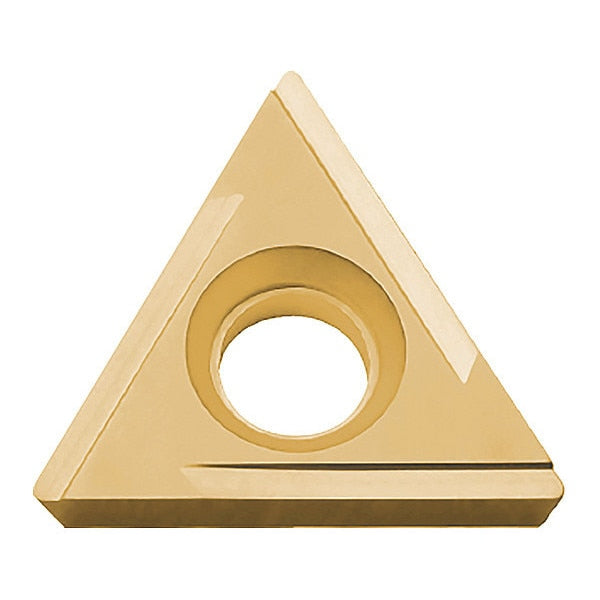

Diamond Turning Insert, Triangle, 1/4", 1/64"

SKU
Brand Kyocera
Categories
Description Diamond Turning Insert, Chip-Breaker Code H, Inscribed Circle 1/4 in, Megacoat Nano, ANSI Code TPGH221LH, Clearance Angle 11 Degrees , Coating Process PVD
graingerSKU: 185AH0, mscSKU: , zoro_no: G7418234, mongo_id: 65bbe7b19a749db82274f310

Web Price

$14.86 / each

Qty

Minimum order: 10

Product Details

ANSI Code TPGH221LH

Chip-Breaker Yes

Chip-Breaker Code H

Clearance Angle 11 Degrees

Coating Process PVD

Corner Radius 1

Country of Origin (subject to change) Japan

Cutting Application Back Boring, Boring, Copying, External Turning, Internal Facing

Cutting Direction Left Hand

Features Megacoat Nano for Efficient Machining with High-Quality Surface Finishes and Superior Wear and Adhesion Resistance, Recommended Cermet for Stable Steel Machining and High Quality Surface Finish

Finish - Machining Megacoat Nano

General Shape Triangle

Hole Type 70 Degrees to 90 Degrees Countersink Through Hole

Included Angle 60 Degrees

Inscribed Circle 2

Insert Code 221

Insert Holding Type Screw

Insert Shape Triangle

ISO Number TPGH110304L-H

Manufacturer Grade PV720

Material - Machining Cermet

Material Grade - Machining TiCN Component
