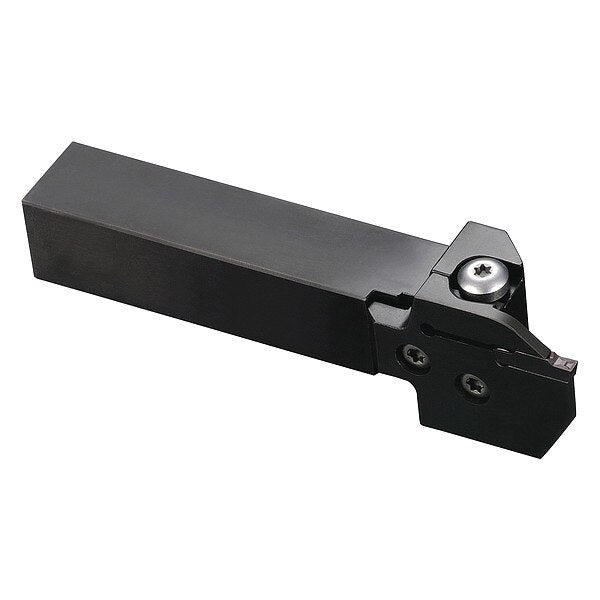

External Grooving Toolholder, KGDL 2020X5T10S

SKU
Brand Kyocera
Categories
Description Indexable Parting and Grooving Tool Holder, Insert Style GDG; GDGS; GDM; GDMS, Left Hand, Cut-Off, Grooving, Shank Width 20.00mm, ANSI Code KGDL2020X5T10S, Coolant Fed Non-Coolant Through
graingerSKU: 170JU6, mscSKU: , zoro_no: G3832493, mongo_id: 65bbe98822d7a989a995f9dd

Web Price

$272.49 / each

Qty

Product Details

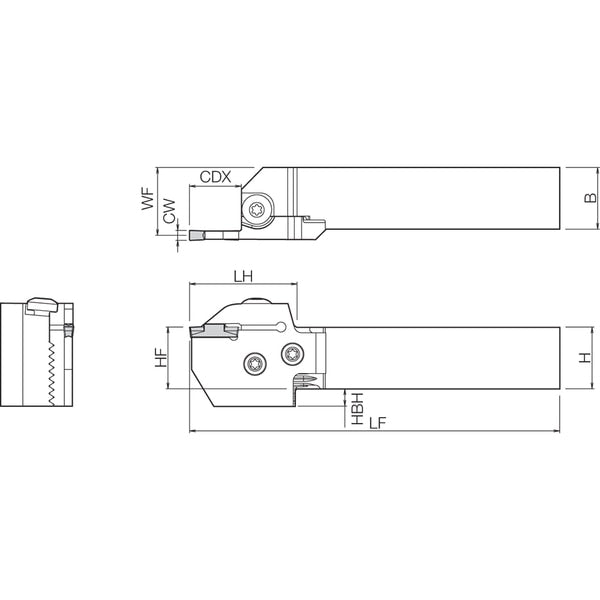

ANSI Code KGDL2020X5T10S

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) Japan

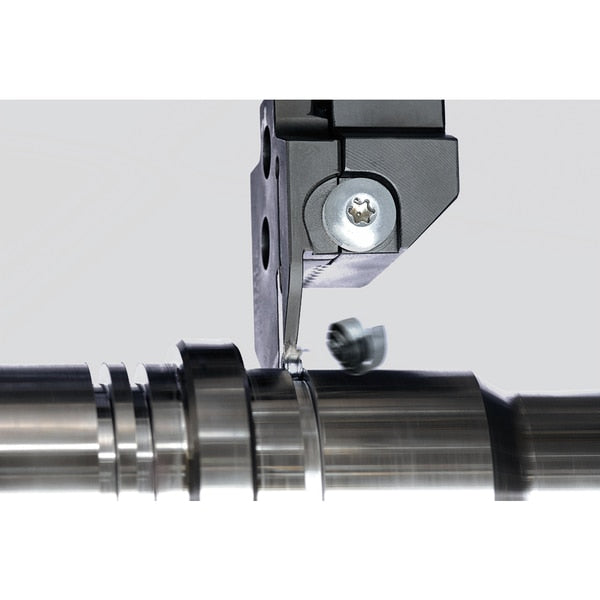

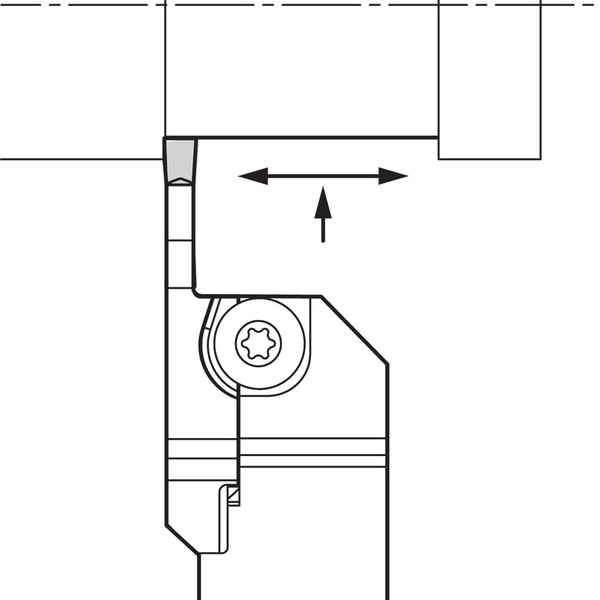

Cutting Application Cut-Off, Grooving

Cutting Direction Left Hand

Cutting Height 20.00mm

Cutting Location External

Depth of Cut 10.00mm

Features Adaptable to a Wide Range of Applications by Swapping Out Blades, High Rigidity Switch Blade Style Holder, Rake Angle is Insert Dependent, Various Edge Widths and Cutting Depths Possible by Changing the Blade and Toolholder Combination

Head Length 33.00mm

Includes Toolholder and Blade

Insert Holding Type Screw

Insert Style GDG; GDGS; GDM; GDMS

ISO Number KGDL2020X-5T10S

Max. Grooving Width 6.00mm

Overall Length 115.00mm

Package Quantity 1

Shank Height 20.00mm

Shank Material Steel

Shank Shape Square

Shank Width 20.00mm
