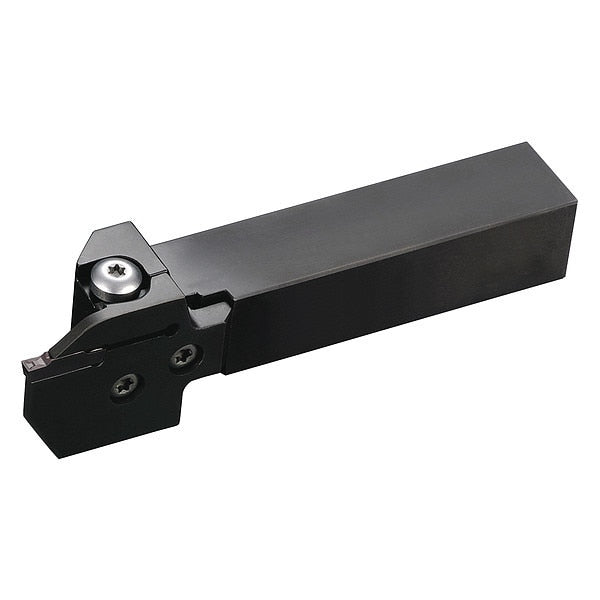

External Grooving Toolholder, KGDR 12X3T10S

SKU
Brand Kyocera
Categories
Description Indexable Parting and Grooving Tool Holder, Insert Style GDG; GDGS; GDM; GDMS, Right Hand, Cut-Off, Grooving, Shank Width 3/4 in, ANSI Code KGDR12X3T10S, Coolant Fed Non-Coolant Through
graingerSKU: 170JT6, mscSKU: , zoro_no: G3832247, mongo_id: 65bbea4a22d7a989a99a7670

Web Price

$299.99 / each

Qty

Product Details

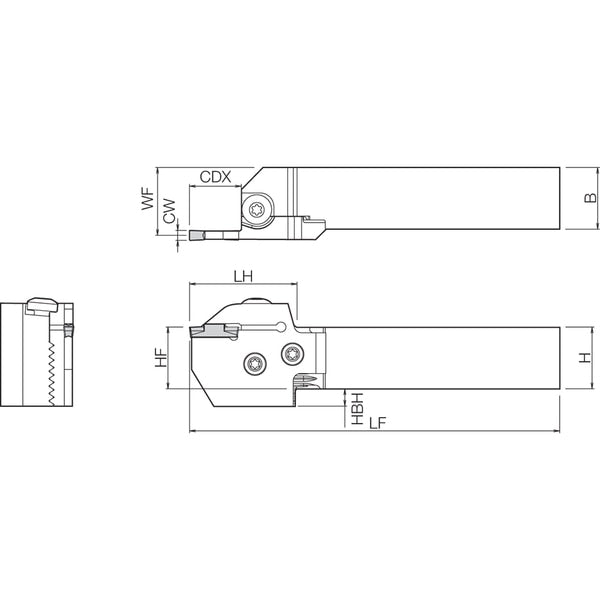

ANSI Code KGDR12X3T10S

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) Japan

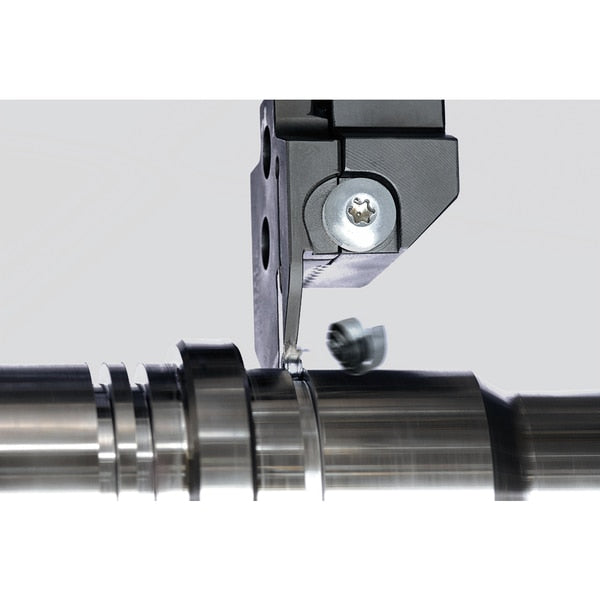

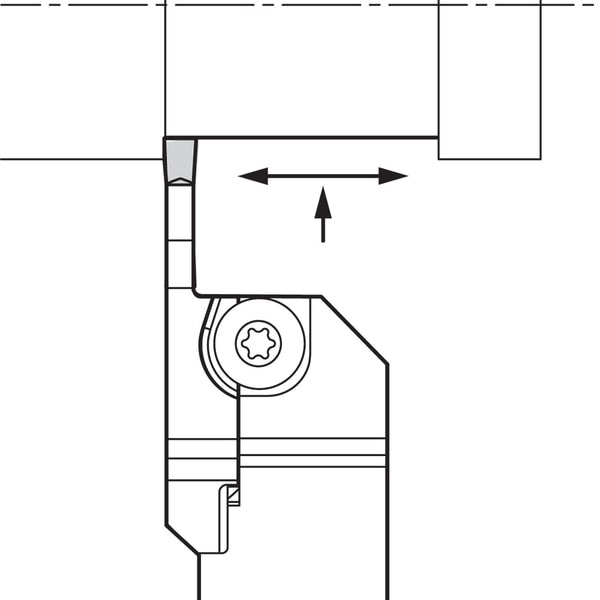

Cutting Application Cut-Off, Grooving

Cutting Direction Right Hand

Cutting Height 3/4 in

Cutting Location External

Depth of Cut 0.3937 in

Features Adaptable to a Wide Range of Applications by Swapping Out Blades, High Rigidity Switch Blade Style Holder, Rake Angle is Insert Dependent, Various Edge Widths and Cutting Depths Possible by Changing the Blade and Toolholder Combination

Head Length 1.2992 in

Includes Toolholder and Blade

Insert Holding Type Screw

Insert Style GDG; GDGS; GDM; GDMS

ISO Number KGDR12X3T10S

Max. Grooving Width 0.1575 in

Overall Length 4.5300 in

Package Quantity 1

Shank Height 3/4 in

Shank Material Steel

Shank Shape Square

Shank Width 3/4 in
