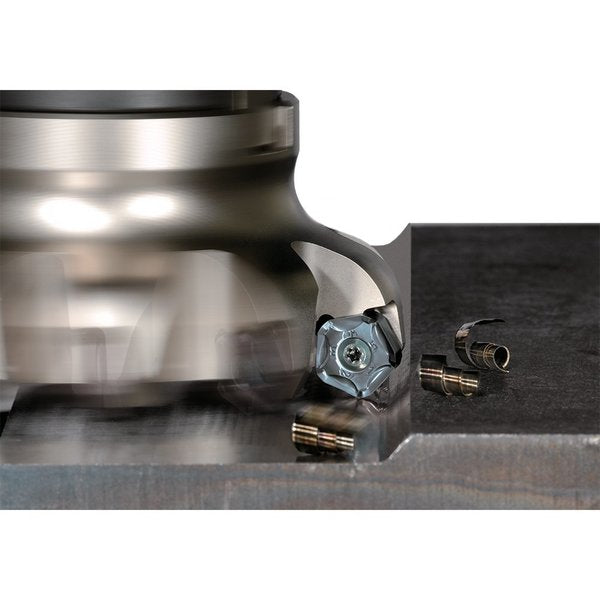

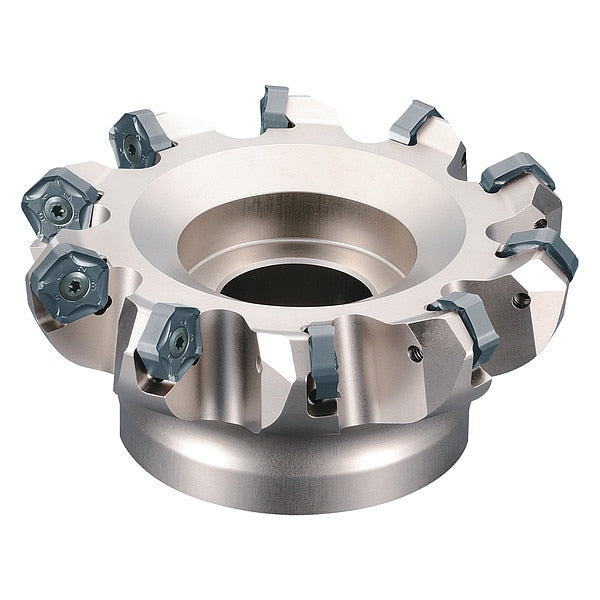

Face Mill, MFPN 45080R8T, MFPN 80.00mm Cutting Dia

SKU
Brand Kyocera
Categories
Description Indexable Face Mill, Max. Cutting Dia. 93.00mm, Arbor Dia. 1 in, Depth of Cut 6.00mm, ANSI Code MFPN45080R8T, Coolant Fed Non-Coolant Through, Cutting Application Chamfering, Face Milling
graingerSKU: 170KK0, mscSKU: , zoro_no: G3833245, mongo_id: 65bbe7da9a749db82275d5a4

Web Price

$1,146.24 / each

Qty

Product Details

ANSI Code MFPN45080R8T

Arbor Dia. 1 in

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) Japan

Cutting Application Chamfering, Face Milling

Cutting Direction Right Hand

Depth of Cut 6.00mm

Features Double-Sided 10-Edge Inserts, Extra Fine Pitch, Reduced Chattering with Low Cutting Forces Due to Curved Cutting Edge Design, Suppresses Fracturing with Dual Angle Edge Design

Hub Outside Dia. 93.00mm

Insert Holding Type Screw

Insert Size 1205

Insert Style PNEU; PNMU

ISO Number MFPN45080R-8T

Max. Cutting Dia. 93.00mm

Min. Cutting Dia. 80.00mm

Number of Inserts 8

Overall Length 50.00mm

Package Quantity 1

Rake -8 Degrees Radial, 10 Degrees Axial

Side Cutting Edge Angle 45 Degrees
