Home / Face Mill, MFPN 454000R10T, MFPN 4.0000" Cutting Dia

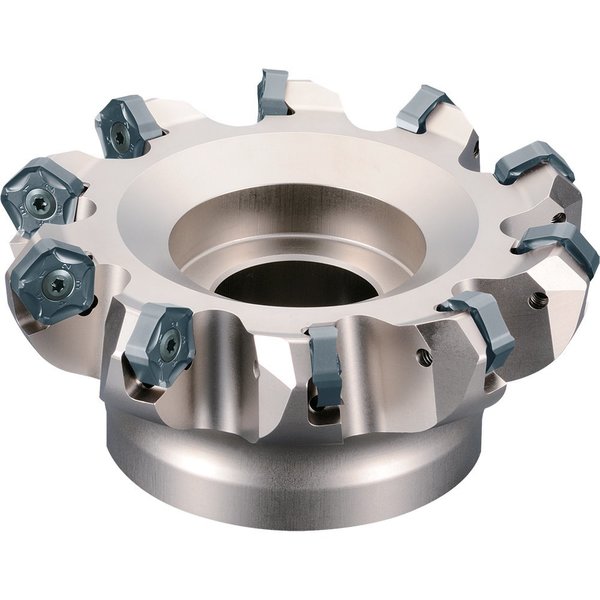

Face Mill, MFPN 454000R10T, MFPN 4.0000" Cutting Dia

SKU
Brand Kyocera
Categories
Description Indexable Face Mill, Max. Cutting Dia. 4.3150 in, Arbor Dia. 1 1/2 in, Depth of Cut 0.2362 in, ANSI Code MFPN454000R10T, Coolant Fed Non-Coolant Through, Cutting Application Chamfering, Face Milling
graingerSKU: 170KC3, mscSKU: , zoro_no: G3832344, mongo_id: 65bbe7859a749db822740b5a

Web Price

$1,327.49 / each

Qty

Product Details

ANSI Code MFPN454000R10T

Arbor Dia. 1 1/2 in

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) United States

Cutting Application Chamfering, Face Milling

Cutting Direction Right Hand

Depth of Cut 0.2362 in

Features Double-Sided 10-Edge Inserts, Extra Fine Pitch, Reduced Chattering with Low Cutting Forces Due to Curved Cutting Edge Design, Suppresses Fracturing with Dual Angle Edge Design

Hub Outside Dia. 2.7559 in

Insert Holding Type Screw

Insert Size 1205

Insert Style PNEU; PNMU

ISO Number MFPN454000R-10T

Max. Cutting Dia. 4.3150 in

Min. Cutting Dia. 4 in

Number of Inserts 10

Overall Length 1.9685 in

Package Quantity 1

Rake -6 Degrees Radial, 10 Degrees Axial

Side Cutting Edge Angle 45 Degrees
