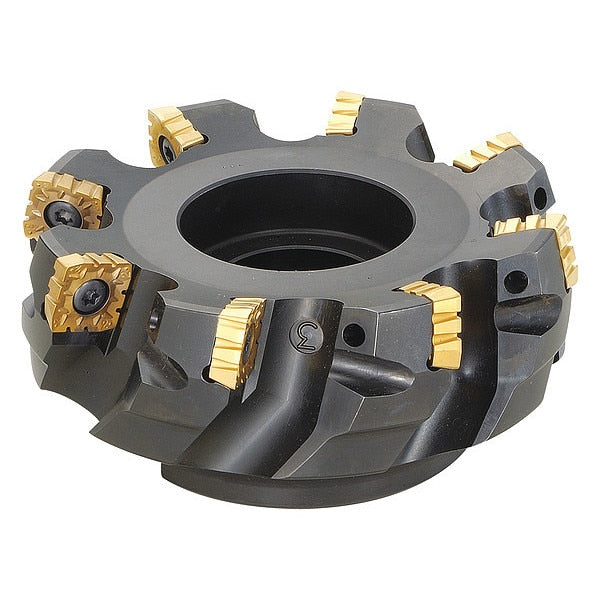

Face Mill, MSRS 15100R6T, MSRS15 100.00mm Cutting Dia

SKU
Brand Kyocera
Categories
Description Indexable Face Mill, Max. Cutting Dia. 107.00mm, Arbor Dia. 1 1/4 in, Depth of Cut 12.00mm, ANSI Code MSRS15100R6T, Coolant Fed Non-Coolant Through, Cutting Application Face Milling, Heavy Milling
graingerSKU: 170KG5, mscSKU: , zoro_no: G3833026, mongo_id: 65bbe7fc9a749db82276ba9f

Web Price

$1,296.24 / each

Qty

Product Details

ANSI Code MSRS15100R6T

Arbor Dia. 1 1/4 in

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) Korea, Republic of

Cutting Application Face Milling, Heavy Milling

Cutting Direction Right Hand

Depth of Cut 12.00mm

Features Fine Pitch, Large Depths of Cut and High Feed Rates, Notched Inserts Reduce Cutting Forces When Entering the Workpiece, Smooth Chip Evacuation Prevents Fracturing Caused by Biting Chips, Stable Machining Without Chattering

Hub Outside Dia. 107.00mm

Insert Holding Type Screw

Insert Size 1806

Insert Style SPMT

ISO Number MSRS15100R-6T

Max. Cutting Dia. 107.00mm

Min. Cutting Dia. 100.00mm

Number of Inserts 6

Overall Length 50.00mm

Package Quantity 1

Rake -5 Degrees Radial, 9 Degrees Axial

Side Cutting Edge Angle 75 Degrees
