Home / Face Mill, MSRS 154000R6T, MSRS15 4.0000" Cutting Dia

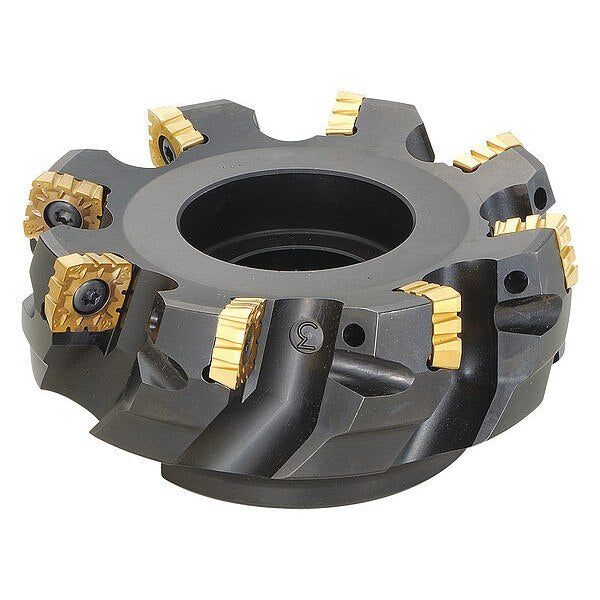

Face Mill, MSRS 154000R6T, MSRS15 4.0000" Cutting Dia

SKU
Brand Kyocera
Categories
Description Indexable Face Mill, Max. Cutting Dia. 4.2700 in, Arbor Dia. 1 1/4 in, Depth of Cut 0.4724 in, ANSI Code MSRS154000R6T, Coolant Fed Non-Coolant Through, Cutting Application Face Milling, Heavy Milling
graingerSKU: 170KG9, mscSKU: , zoro_no: G3833333, mongo_id: 65bbea4a22d7a989a99a6ce4

Web Price

$1,201.24 / each

Qty

Product Details

ANSI Code MSRS154000R6T

Arbor Dia. 1 1/4 in

Coolant Fed Non-Coolant Through

Country of Origin (subject to change) Korea, Republic of

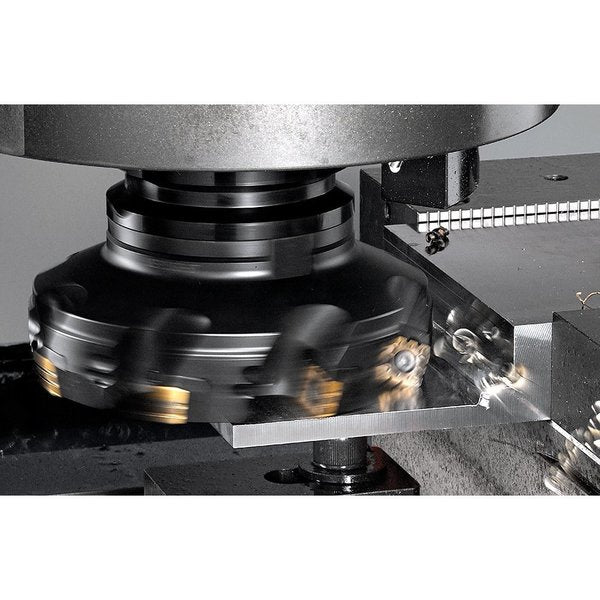

Cutting Application Face Milling, Heavy Milling

Cutting Direction Right Hand

Depth of Cut 0.4724 in

Features Fine Pitch, Large Depths of Cut and High Feed Rates, Notched Inserts Reduce Cutting Forces When Entering the Workpiece, Smooth Chip Evacuation Prevents Fracturing Caused by Biting Chips, Stable Machining Without Chattering

Hub Outside Dia. 3 3/4 in

Insert Holding Type Screw

Insert Size 1806

Insert Style SPMT

ISO Number MSRS154000R-6T

Max. Cutting Dia. 4.2700 in

Min. Cutting Dia. 4 in

Number of Inserts 6

Overall Length 1.9685 in

Package Quantity 1

Rake -5 Degrees Radial, 9 Degrees Axial

Side Cutting Edge Angle 75 Degrees
