Home / Milling Insert, Parallelogram, BDMT 170404ERJS CA6535 Grade CVD Carbide

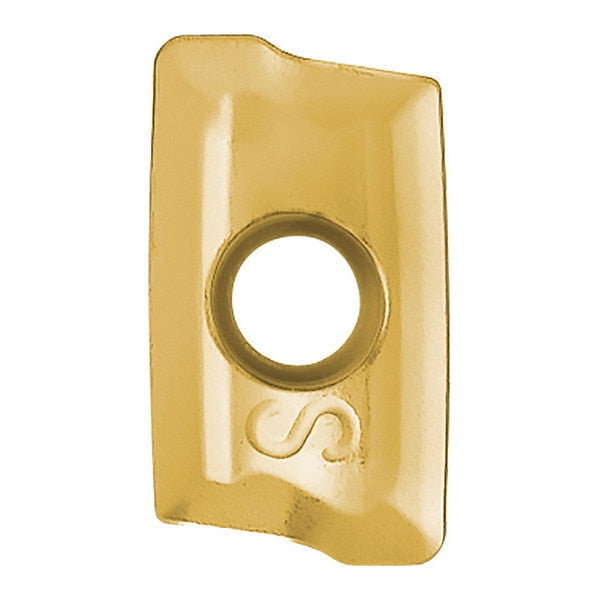

Milling Insert, Parallelogram, BDMT 170404ERJS CA6535 Grade CVD Carbide

SKU
Brand Kyocera
Categories
Description Parallelogram Milling Insert, Positive, BDMT170404ERJSC35, ER-JS, 18 Degrees
graingerSKU: 166WL9, mscSKU: , zoro_no: G8278263, mongo_id: 65bbe7b19a749db82274f292

Web Price

$20.19 / each

Qty

Minimum order: 10

Product Details

ANSI Code BDMT170404ERJSC35

Chip-Breaker Yes

Chip-Breaker Code ER-JS

Clearance Angle 18 Degrees

Coating Process CVD

Corner Radius 0.40mm

Country of Origin (subject to change) Japan

Cutting Application Facing, Helical Milling, Shouldering, Slotting

Cutting Direction Right Hand

Cutting Edge Honed, Low Cutting Force

Cutting Edge Length 17.00mm

Features For Martensitic Stainless Steel and Heat-Resistant Alloys, For Ni-Based Heat-Resistant Alloys and Martensitic Stainless Steel, High Heat and Wear Resistance

Finish - Machining TiCN+Al2O3+TiN

For Toolholder MEC...-17

Hole Type Countersunk Hole

Included Angle 82 Degrees

Insert Holding Type Screw

Insert Size 170404

Insert Style BDMT

ISO Number BDMT170404ER-JS

Manufacturer Grade CA6535

Material - Machining Carbide

Measurement System Metric

Mounting Hole Dia. 4.40mm
