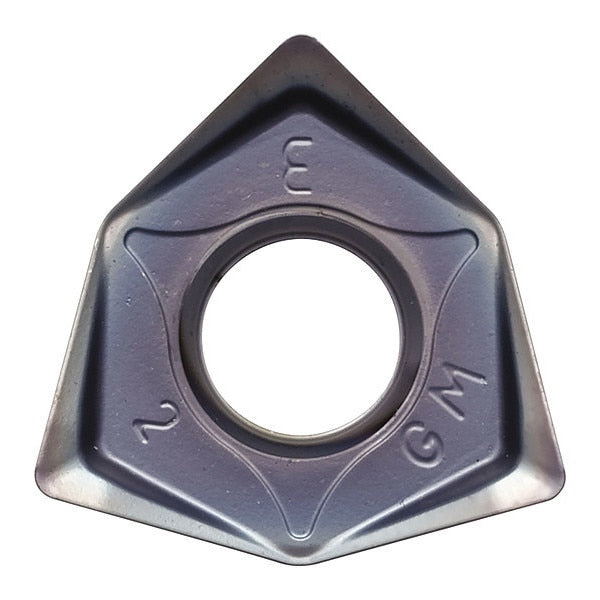

Milling Insert, Trigon, WNMU 080604ENGM PR1535 Grade PVD Carbide

SKU
Brand Kyocera
Categories
Description Parallelogram Milling Insert, Inscribed Circle 14.02mm, Positive, WNMU080604ENGM, EN-GM
graingerSKU: 166WN1, mscSKU: , zoro_no: G8278367, mongo_id: 65bbe8c922d7a989a99175f0

Web Price

$20.61 / each

Qty

Minimum order: 10

Product Details

ANSI Code WNMU080604ENGM

Chip-Breaker Yes

Chip-Breaker Code EN-GM

Coating Process PVD

Corner Radius 0.40mm

Country of Origin (subject to change) Japan

Cutting Application Facing, Shouldering, Slotting

Cutting Direction Neutral

Cutting Edge Honed

Features 1.70mm Wiper Edge Length, For Precipitation-Hardened Stainless Steel, For Titanium Alloys and Precipitation-Hardened Stainless Steel

Finish - Machining Megacoat Nano

For Toolholder MFWN90...

Hole Type Screw Hole

Included Angle 80 Degrees

Inscribed Circle 14.02mm

Insert Holding Type Screw

Insert Size 080604

Insert Style WNMU

ISO Number WNMU080604EN-GM

Manufacturer Grade PR1535

Material - Machining Carbide

Measurement System Metric

Mounting Hole Dia. 6.20mm

Number of Cutting Edges 6

Package Quantity 1

Primary Material Application Stainless Steel

Primary Material Application ISO Code M

Rake Positive

Secondary Material Application Austenitic Stainless Steel, Carbon and Alloy Steel, Free-Cutting Steel, High-Temperature Alloys, Martensitic Stainless Steel, Mold Steel

Secondary Material Application ISO Code M, P, S

Shape Trigon

Thickness 6.65mm

Through Hole Inside Dia. 6.20mm

Wiper Insert Yes
